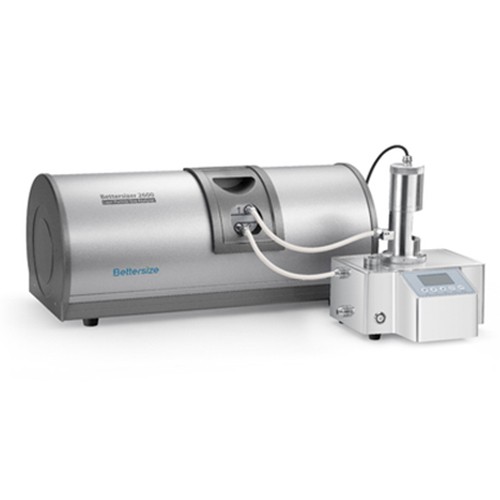

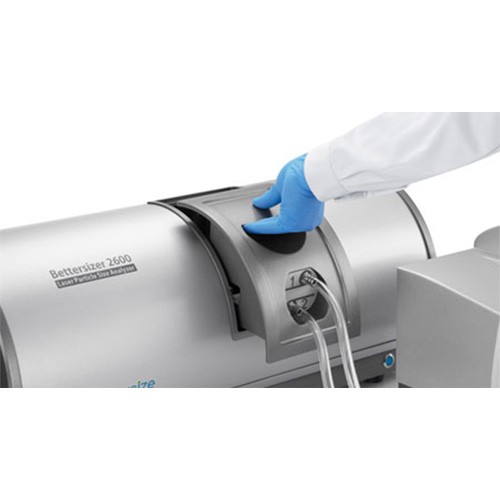

Bettersizer 2600 Particle Size Analyzer

Product Item : 2600
Category： Particle Size and Shape Analyzer
Particle Size Analyzer
laser diffraction particle analyzers
particle analyzers
particle shape analysis
Product description：Bettersizer 2600 is designed and used for analyzing particle size using either wet or dry dispersion techniques. Particle size(wet) : 0.02 - 2,600μm Particle size(dry) :0.1 - 2,600μm
INQUIRY

Bettersizer 2600 Introduction

Particle size can be measured by either wet or dry method, using the Bettersizer 2600. A variety of applications have been covered by this versatile, powerful analyzer with its modular design and patented technologies. Users can characterize materials from 0.02 μm to 2600 μm, easily and accurately.

Bettersizer 2600 Features and Benefits

● Technology: Laser diffraction

● Particle size range: Wet dispersion: 0.02 to 2,600μm Dry dispersion: 0.1 to 2,600μm

● Wet and dry method of particle sizing is suitable for a wide variety of dispersing particle systems

● Precise measurement of both large and small particles covering the broadest range by a new patented technology utilizing both Fourier and Reverse Fourier optical systems

● Optical bench with 92 detectors covering an angular range of 0.016° - 165° Optional wet and/or dry dispersion

● Small volume dry dispersing module for small sample quantities especially for pharmaceutical or valuable samples in short supply

● Easy and fast to changeover between dispersing modules

● Easy to implement, create and use Standard Operation Procedures for new materials

● Refractive index measurement for providing a more accurate parameter to calculate the results.

● User-friendly software, easily learnt

Bettersizer 2600 Optical System

The Bettersizer 2600 is superior in the combination of Fourier and inverse Fourier designs. This smart design allows, on the one hand, the detection of scattered light in a very wide angular range from 0.016° to 165°. On the other hand, in contrast to the inverse Fourier design, the particles do not have to lie on one plane – the simultaneously accurate measurement of small and large particles is therefore achieved.

Bettersizer 2600 Performance

High Resolution and Sensitivity

The resolution and sensitivity of Bettersizer 2600 as verified below: sample A was gradually added to sample B, and the graph changed correspondingly.

Bettersizer 2600 high resolution and sensitivity

Sample A < Sample B

Bettersizer 2600 high resolution and sensitivity

Sample A = Sample B

Bettersizer 2600 high resolution and sensitivity

Sample A > Sample B

Bettersizer 2600 Technology

Laser Diffraction

Specification of Bettersizer 2600
Particle size distribution	Suspensions, emulsions, dry powders
General
Principle	Laser diffraction technology
Analysis	Mie scattering theory and Fraunhofer diffraction theory
Typical measurement time	Less than 10 seconds
Measurement performance
Measuring range	0.02 - 2600 μm (wet) * 0.1 - 2600 μm (dry) *
Accuracy error	≤ 0.5% *
Repeatability	≤ 0.5% *
Number of size classes	100 (user adjustable)
Feeding mode	Automatic circulation or micro cuvette (wet) Gas transportation (dry)
Special functions	SOP settings, refractive index measurement, sample ratio calculation
Main device
Optical system	Combined Fourier and inverse Fourier & Tilted sample cell
Laser	High-power optical fiber laser (10 mW / 635 nm)
Detector	92 detectors (forward, lateral and backward arrangements)
Measuring angle	0.016 - 165°
Wet dispersion module
Measurement method	One-click operation (automated measurement, cleaning, saving, printing, etc.)
Dispersion medium	Water or organic solvents (sample dependent)
Circulation speed	300 - 2500 r/min
Ultrasonication	Dry burning prevention，50 W
Dry dispersion module
Dispersion medium	Air/ Nitrogen/Noble gas
Air pressure	0.1 - 0.8 MPa (Air compressor dependent)
Software
Conformity	21 CFR Part 11, ISO 13320, USP <429>, CE
Reports	Customizable reporting
System parameters
Dimensions (L x W x H)	70.5 x 31.8 x 29.5 cm
Weight	23 kg
Supply voltage	100 - 240V, 50/60 Hz
Computer configuration (recommended)
Computer interface	At least one high-speed USB 2.0 or USB 3.0 port required
Operating system	Windows 7 (32 bit and 64 bit) or higher
Hardware specification	Intel Core i5 Processor, 4GB RAM, 250GB HD, Wide screen monitor
*Sample and sample preparation dependent

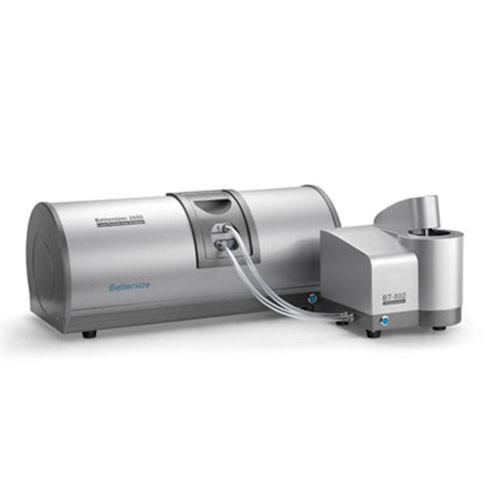

Sample Dispersion Modules	BT-802	BT-804	BT-80N	BT-902	BT-903
Sample Dispersion	Wet method	Wet & small volume	Anti-corrosive	Dry method	Dry & small volume
Volume	600mL (dispersion medium)	8 mL (dispersion medium)	80 mL (dispersion medium)	0.2 - 10 g (sample)	0.02 - 1 g (sample)
Automation	Fully automated	Semi-automated	Semi-automated	Fully automated	Fully automated
