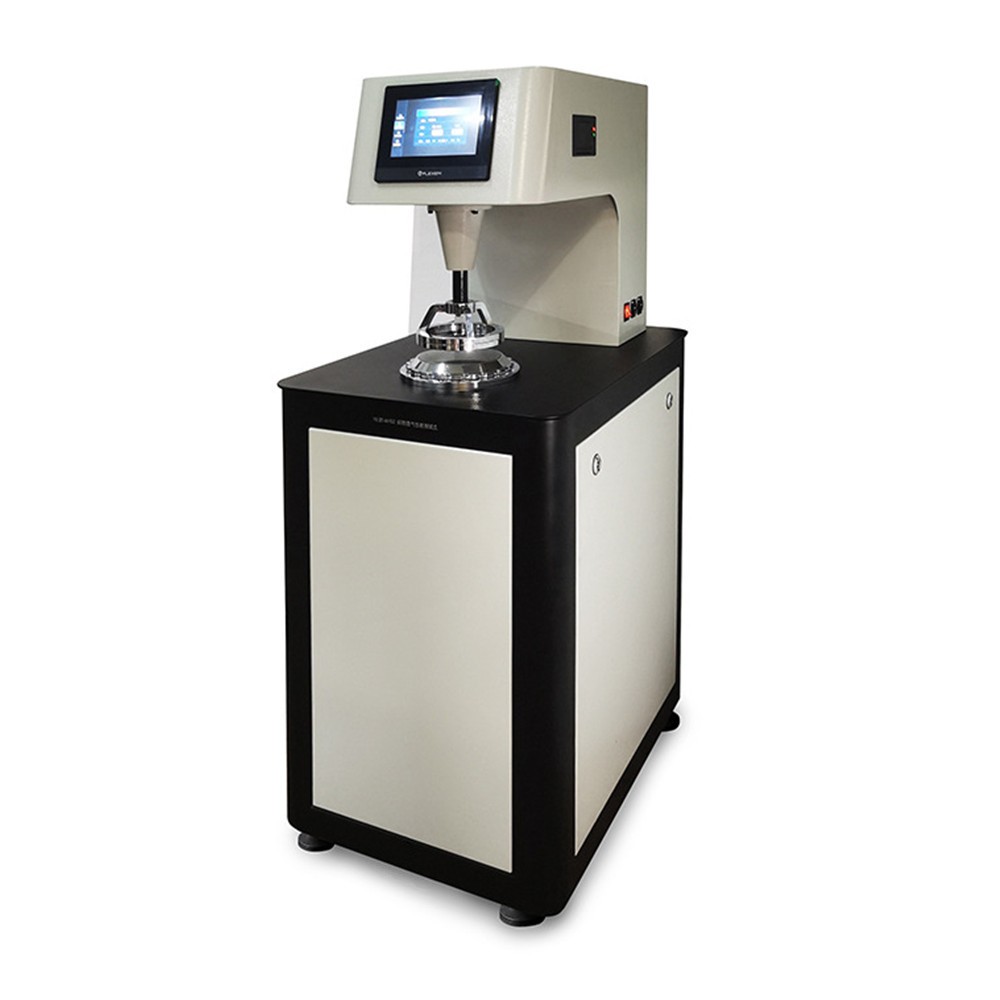

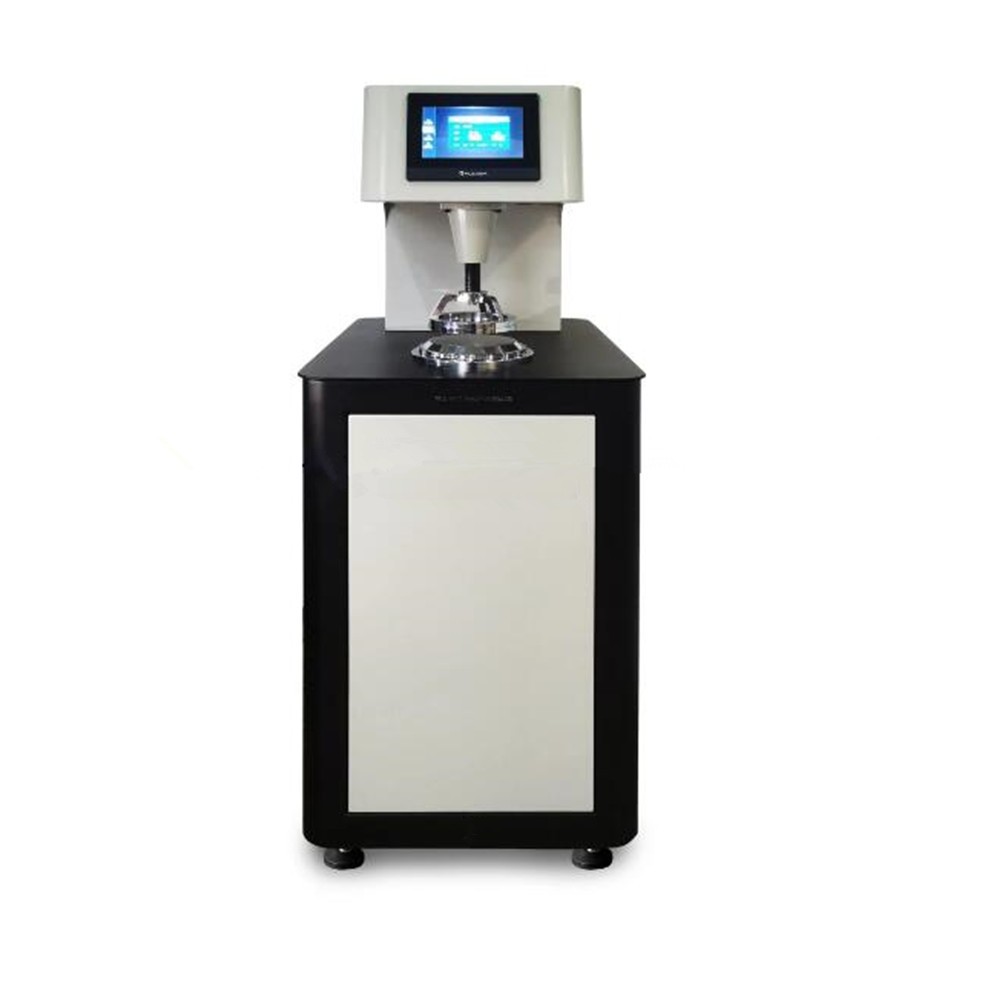

Fabric Air Permeability Tester Air Pereability Lab Testing Machine

Standards:

GB/T 5453, GB/T 13764, ISO 9237, ISO 5636, ASTM D737, etc.

Products Features :

1. Automatic sample clamping, automatic nozzle replacement, fast and accurate testing;
2. Microcomputer processing, the test results are displayed directly, no need to manually check the table for calculation;
3. Chinese and English touch screen menu operation, configuration computer interface;
4. The air tightness detection device can regularly check the air tightness of the instrument;
5. Support instrument or online storage and print report function;
6. 10,000 times of data storage, large storage space, and permanent data storage.

Technical Parameters :

1. Sample pressure difference range: 1-4000.0Pa;
2. Measurable air permeability: 0-10000mm/s (20cm2);
3. Measurement error: 1±2% mm/s (display value);
4. Measurable fabric thickness≤10mm;
5. Air permeability unit: mm/s, cm³/cm²/s, L/dm²/min, L/m²/s, m³/m²/min, m³/m²/h, ft³/ft²/min;
6. Test area: 100cm2, 5cm2, 20cm2, 50cm2,   Ф50mm (≈19.6cm2), Ф70mm (≈38.5cm2);
7. Data processing capacity: ≤10000 tests;
8. The conventional single test time is less than or equal to 20s;
9. Power supply: AC220V 50Hz 1kW;
10. Dimensions: 712mm×512mm×1230mm;
11. Weight: about 120Kg.
