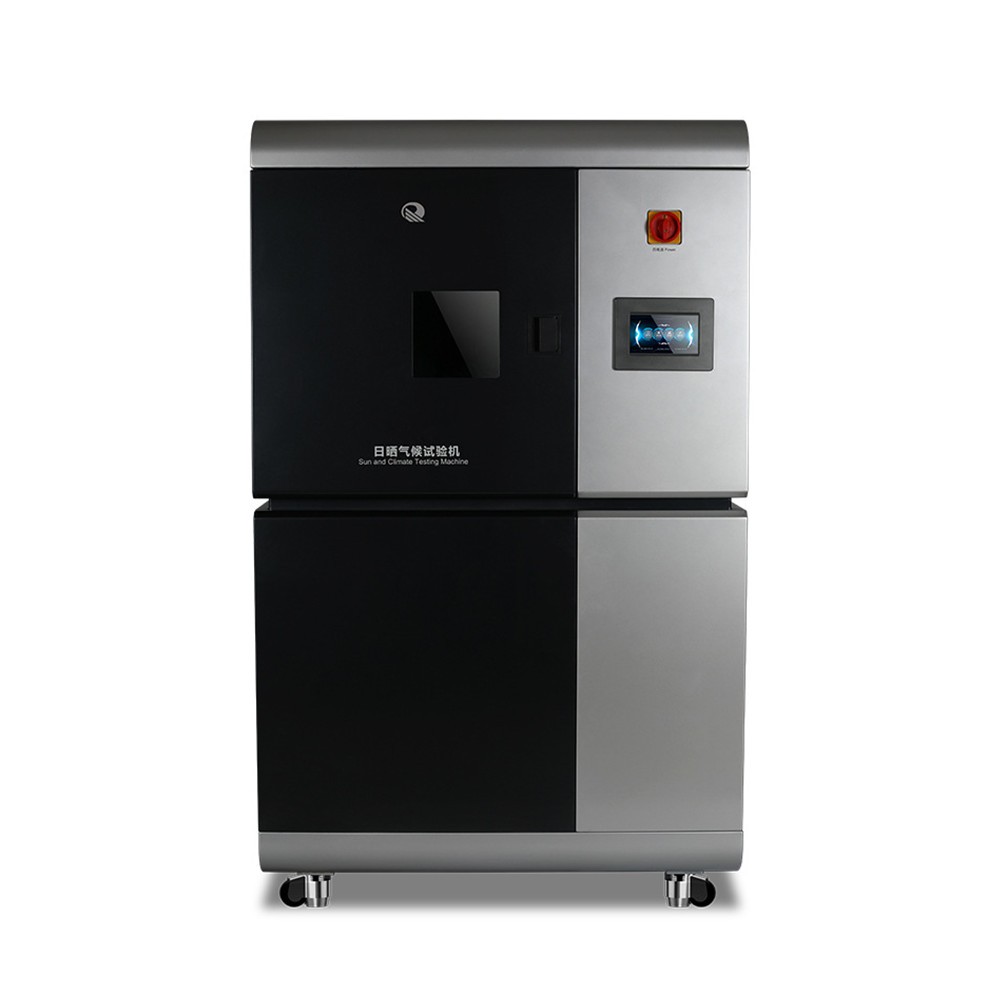

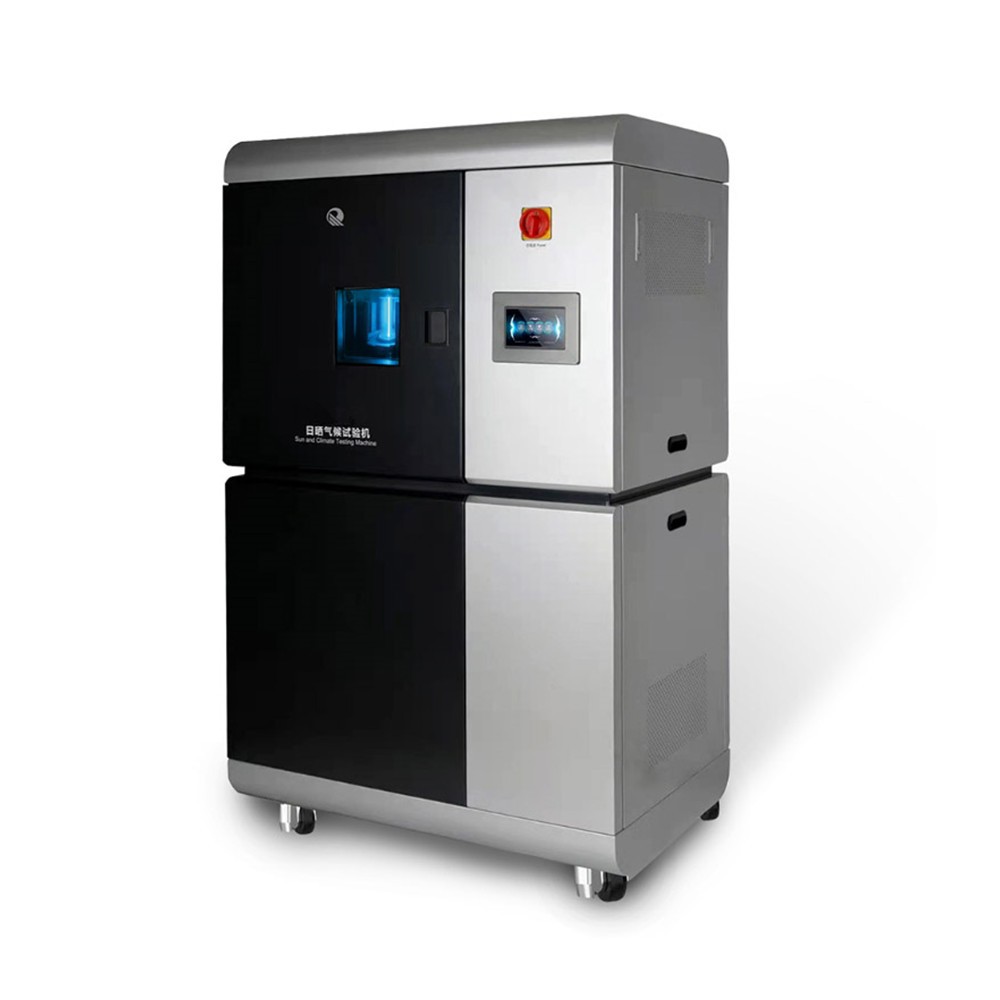

Xenon Arc Lamp Test Chamber

Xenon Arc Lamp Test Chamber Xenon Accelerated Weathering Test Machine

Standards:

GB/T15102-2006 ；GB/T14576 ；GB/T15104-2006 ；GB/T8430 ；AATCC TM16； ISO105-B04 ；ISO105-B02

Products Features :

1. Lighting intensity digital setting, real-time monitoring, automatic adjustment, in line with different standards for the stability of the test light source requirements (can switch 420nm; 300-800nm or 300-400nm band monitoring);
2. Standard blackboard thermometers (BST), blackboard thermometers (BPT) can be selected, and the sample at the same station (isometric) detection, truly reflect the test condition of the sample;
3. The measured data after processing by CPU in numbers, charts, curves and other ways to display on the color screen, no need to stop the observation;
Microprocessor 32-bit intelligent CPU, efficient real-time control, to ensure accurate reproduction of the same test environment;
5. 7 inch color screen display control, a variety of test monitoring mode (animation, digital, chart), easy to control, intuitive and clear;
6. All sample clips are timed separately, and different samples can be tested on the same machine, which is convenient for testing and monitoring and reduces operating costs;
7. Rated 1500W long arc xenon lamp technology, high efficiency and energy saving, true simulation of sunlight spectrum;
8. Industrial temperature control (refrigeration) system, the temperature adjustment in the test bin quickly and smoothly;
9. Built-in self-circulation system and air filtration system, greatly reducing the environmental requirements;
10. European traceable spectral analyzer, multiple measurement calibration;
11. Built-in network communication module, can customize the remote monitoring function of mobile APP;
12. The instrument can choose the test environment parameters of thermal-sensitive print output or data export;
13. One test can run for 1000 hours of quality assurance.

Technical Parameters :

1. Temperature control range of test chamber :(20 ~ 50)ºC; Accuracy: + 2 ºC
2. Test chamber humidity control range: (15 ~ 95) % RH, accuracy: ± 5%RH
3. Test time control range: 0 ~ 99999:59 (h: min); Accuracy: + / - 1 min
4. Irradiance control range:
(0.80 ~ 1.60)W/m2/420nm precision: ±0.02W/m2/420nm
(25-60)W/m2/300-400nm accuracy: ±2W/m2/420nm
(300-650)W/m2/300-800nm accuracy: ±10W/m2/420nm
Digital setting, automatic compensation
5. Xenon lamp source:
A. Rated power of xenon arc lamp: 1.5KW;
B. Color temperature: 5500K ~ 6500K;
6. Sample:
A. Sample holder rotation speed: 5rpm
B. Sample holder distribution diameter: 286mm

1. Size and number of sample clips:
