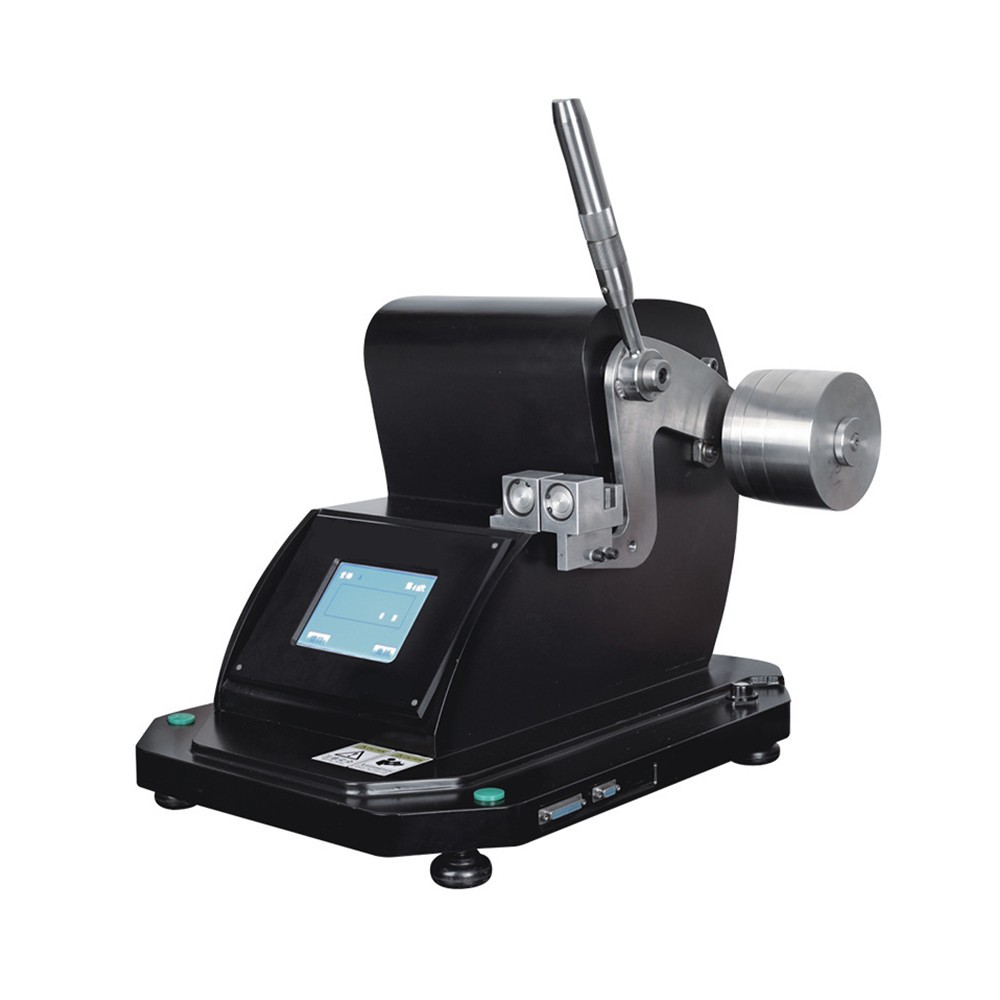

Digital Elmendorf Tearing Machine

Category： Textile Testing Equipment
Brand :ZHIYI
Model: ZYET-006T
Package : Wooden Box
Delivery: 5-7 days after payment received
Product description：Digital Elmendorf Tearing Machine is designed for Elmendorf method tearing resistance test of textile, fabrics, paper, paper board and thin film .
INQUIRY

Application :

Used for the determination of tear resistance of various woven fabrics (Elmendorf method), can also be used for the determination of tear resistance of thick paper, plastic cloth, electrical tape, etc.

Standards:

GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734, etc

Features:

1. 128N test range

2, microcomputer control, digital decoding, support online communication

3, color touch screen control, Chinese and English menu operation interface
4, pneumatic clamping, automatic incision
5, a variety of measurement units (cN, GF) selection

Technical Parameters :

1, test range: A hammer: (0 ~ 16)N / B hammer: (0 ~ 32)N /C hammer: (0 ~ 64)N / D hammer :(0 ~ 128)N
2, the test accuracy: ≤± 0.2% F·S
3, tear length: 43mm
4, automatic incision length :(20±0.2)mm
5, sample size :(100×63)mm
6, sample holding: pneumatic mode
7, working power supply: AC220V±10% 50Hz 100W
8. Overall size :(560×480×530)mm
9, weight: 78kg
