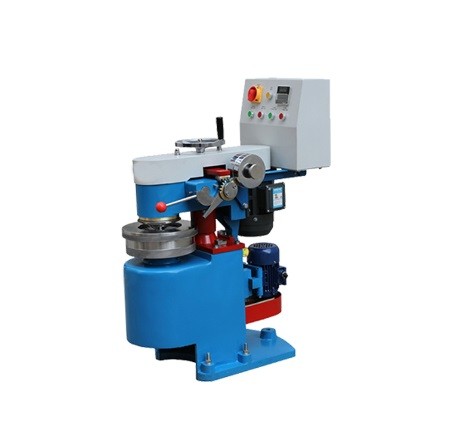

PFI Vertical Refiner

Product Item : ZY-PFI
Category： Beater
vertical refiner
refiner
vertical beating machine
debonding machine
Product description：PFI vertical refiner is basically an experimental beater widely used in the preparation stage of paper making. Beating mechanism: a constant load is given to the pulp circulating in between stainless
INQUIRY

PFI Vertical Refiner Introduction

PFI vertical refiner is basically an experimental beater widely used in the preparation stage of paper making. Beating mechanism: a constant load is given to the pulp circulating in between stainless steel roll and cylindrical mill house, which are rotating with a constant difference in circumferential velocity, applying mechanical effects such as shear and compression, thereby performing beating by frictional forces between fibers.The number of rotations is read on the counter. The beating degree is evaluated by the freeness tester.

PFI Vertical Refiner Working Principle

The metered pulp with a specified concentration is placed between the knife roller and the smooth beating cylinder. The knife roller and the beating cylinder rotate at different circumferential speeds. This acts on the pulp to achieve the purpose of beating.

PFI Vertical Refiner Product Feature

● Adjustable gap between flying knife and pulp tank wall;

● Three sets of standard beating pressure quantitative combination;

● Manual cutter head working up and down, safe operation, convenient cleaning;

● Automatic control of revolution or time, high brightness digital display;

● Rigid head, long Time is used, and the clearance is accurate. Cast base, smooth operation and no noise.

● The distance between the flying knife and the slurry tank is displayed by a digital instrument, and the adjustment accuracy is 0.005mm

PFI Vertical Refiner Standard

ISO5264/2 TAPPIT248

PFI Vertical Refiner Technical Data

No.	Parameter item	Technical index
1	Slurry tank inner diameter	Φ250mm thickness 53mm
2	Flying knife rotor outer diameter	Φ200mm height 50mm knife thickness 5mm
3	Flying knife rotor motor	1.1kW /380v
4	Adjusting distance of buckle clearance	0~25mm
5	Slurry tank motor	370W/380v
6	Count/timer display control range	0-999999 (R, H, M, S)
7	Pulp pulp density	0~50%, standard concentration 10%
8	Absolute dry pulp 5~40g, standard 10g, volume 450ml.
9	Beating pressure	(3.33±0.1) N/mm blade length; (1.77±0.1) N/mm blade length; (4.89±0.1)/mm blade length.
10	Dimension	900(L)×400(W)×1100(H)mm
11	Net Weight	230Kg

PFI Vertical Refiner Packing List

Vertical Refiner X1, Operation Manual X1, Warranty Card X1 of the manufacturer.
Note:Because the manufacturer's packaging may be updated, the detailed packing list shal be subject to the test standard configuration of the manufacturer.
