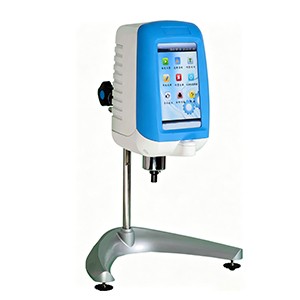

Professional Intelligent Touch-screen Rotary Viscometer

Zhiyi-029 model Professional Touch-screen Rotary Viscometers are upgraded from old digital viscometers. They are equipped a 7 inch touch Iscreen with a powerful human-machine interface , easy to use and can show many testing parameters. They use a MCS-51 series computer to constantly control the rotation speed and the whole testing process. Finish viscosity measurement automatically under controlling of computer and output test results to screen. They can be used to measure viscous resistance and absolute viscosity of liquid, and widely applied in the field of petri chemistry, medicine, food, light industry, textile industry, scientific research, etc.

Advanced Features :

*7 inch high definition touch scree, easy to operate and display rich information. Powerful human-machine interface and
*various humanized operation menu for conversion.
*Anti-static shell and PC material lifting pole
*Build-in temperature probe RTD
*ARM chip processor: higher data processing speed
*New designed durable small axles
*Come with a gigabit ethernet interface to transfer data, reliable and quick.
*Come with USB interface, support operate to save measurement through external disk
*U: single point, continuous and timed saving ways for option.
*Come with RS 232 interface, can print measuring data by mini-printer with less labor.
*Calibrated by users themselves, temperature and viscosity correction factor are
*protected by password, also can be modified by user when they have reliable and accurate data.
*Can measure viscosity by infinitely variable speed, input any speed, the instrument
*would display the max. Measuring range under different rotors. Convenient for user to
*choose suitable testing parameters.
*Convert freely between various viscosity units, dynamic viscosity convert kinematic
*viscosity automatically
*Accompanied with detailed operation instruction

Technical Parameters :

* ZHIYI-029A : measuring range :10-600,000mPa.s

* ZHIYI-029B : measuring range :10-6,000,000mPa.s

* ZHIYI-029C: measuring range :100-80,000,000mPa.s

*Precision: ±1.0% of full range

*Repeatability:±0.5% of full range

*Weight: 10kg

* Dimension: 308mmx300mmx450mm
