  • Internal Bond Sample Cutter

Internal Bond Sample Cutter

  • Product Item : ZY-CQ25
  • Category： Cutter & Accessories
  • bond sample cutter
  • sample cutter
  • sampling
  • Product description：Internal bond tester is used to cut sample with fixed width.
  • INQUIRY

Internal Bond Tester Introduction

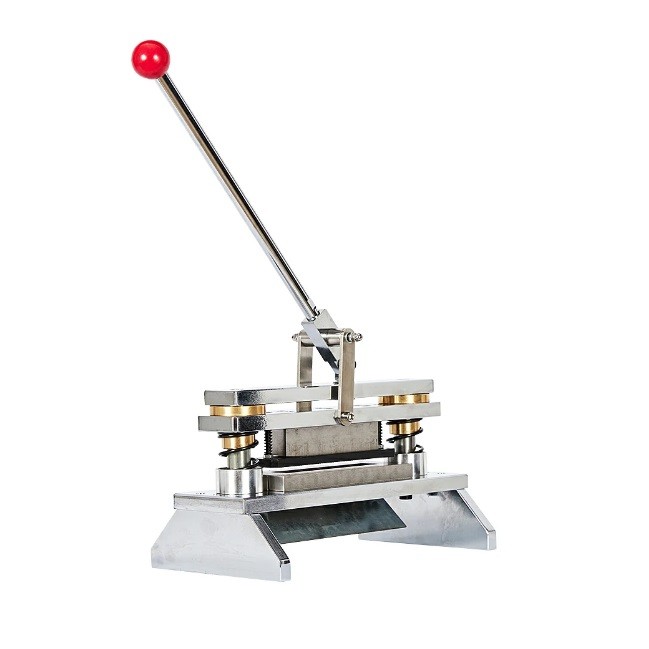

The punching Internal Bond Sample Cutter is used to cut samples with a width of 25.4mm (=1 inch)

The width of the cut sample is fixed.


Internal Bond Tester Standard

QB/T1671


Internal Bond Tester Technical Data

No.

Parameter item

Technical index

1

Sample Width

25.4 mm±0.1mm

2

Sample Max Length

250 mm;

3

Parallelism

≤0.025mm

4

Dimension

450(L)×110(W)×540(H) mm

5

Net Weight

25kg


PREVIOUS：Ring Pressure Sampler NEXT：PFI Vertical Refiner
