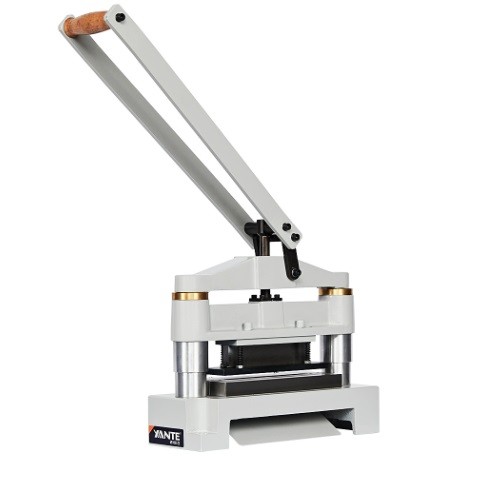

Ring Pressure Sampler

Product Item : ZY-H152
Category： Cutter & Accessories
ring pressure sampler
sampler
sample cutter
paper sample cutter
Product description：Ring pressure sampler is a special sampler for cardboard ring compression strength test. The sampling length is 152 ± 0.2mm, the width length is 12.7 ± 0.1mm, and the sampling Film thickness of ZY-H15
INQUIRY

Ring Pressure Sampler Introduction

ZY-H152 ring pressure sampler is a special sampling device required for cardboard ring compressive strength test (RCT). This sampler has the advantages of high sampling size accuracy and easy operation, and is a satisfactory test auxiliary device for industries and departments such as papermaking, packaging, scientific research, and quality inspection.

Ring Pressure Sampler Feature

Stamping sampling, high sampling accuracy

Novel stamping structure, simple and convenient sampling

Ring Pressure Sampler Standard

OB/T1671

Ring Pressure Sampler Technical Data

No	Parameter	Technical Data
1	Sample Size	（152±0.2）× （12.7±0.1）mm
2	Sample Thickness	（0.1-1.0）mm
3	Dimension	530×130×590 mm
4	Machine Weight	About 25 Kg
