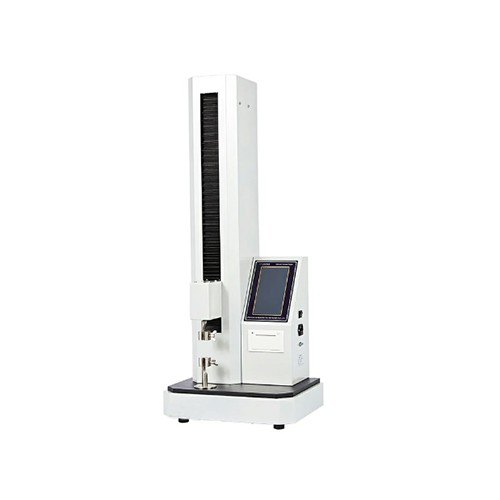

Vertical Tensile Testing Machine

Product Item : ZY-L
Category： Strength Tester
vertical tensile tester
tensile tester
tensile testing machine
Product description：Vertical tensile testing machine is widely used to evaluate the tensile strength of different kinds of specimens such as paper, cardboard, aluminum foil, aluminum-plastic tape, plastic film, Non-woven
INQUIRY

Vertical Tensile Testing Machine Application Range

● Paper, cardboard; aluminum foil, aluminum-plastic tape;

● Plastic film and other non-metallic materials.

● Non-woven fabric

Vertical Tensile Testing Machine Function Introduction

● Measure tensile and tensile strength

● Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus

● Measure the peel strength of adhesive tape

Vertical Tensile Testing Machine Product Features

● The transmission mechanism adopts a ball screw and three guide shafts, and the transmission is stable and accurate.

● Using closed-loop servo stepping motor, low noise and precise control.

● A 7-inch color LCD touch screen is used to display the stretching curve in real time.

● The ARM processor improves the response speed of the instrument and ensures the real-time performance of the measurement.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Features of automatic reset, data memory, overload protection and fault self-diagnosis.

● Cooperate with computer software for communication (purchased separately).

Vertical Tensile Testing Machine Standards

GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494

Vertical Tensile Testing Machine Technical Parameter

Parameter item	Technical index
Power Supply	AC(100～240)V，(50/60)Hz 100W
Working Environment	Temperature(10~35)℃, Humidity≤ 85％
Display	7 inch color touch screen
Measuring range	(0.15～30)N /(1～300)N /(3～1000)N
Display resolution	0.01N(L30) / 0.1N(L300) / 0.1N(L1000)
Indication error	±1%(Range 5%～100%)
Work stroke	500mm
Sample width	15mm(25mm，50mm Optional)
Stretching speed	(1～500)mm/min(Can be adjusted arbitrarily)
Print	Built-in thermal printer
Communication Interface	RS232(Default) (USB, WIFI optional)
Dimension	400×300×800 mm
Net Weight	40kg around
