Zero Span Tensile Tester - 副本

Product Item : ZY-ZL
Category： Strength Tester

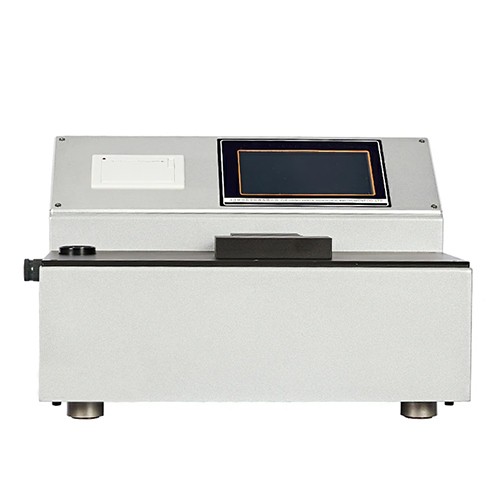

Zero Span Tensile Tester
Tensile Tester
Zero Span Tensile strength Tester
Product description：Zero Span Tensile Tester adopts high-precision load cell, ball screw and three guide shafts, and the transmission is stable and accurate.Real-time display of the tension-displacement curve during the
INQUIRY

Zero Span Tensile Tester Features

● The instrument adopts high-precision load cell, ball screw and three guide shafts, and the transmission is stable and accurate.

● Adopt closed-loop stepping motor, low noise and precise control

● ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.

● Sudden power failure data storage function, the data before the power failure can be retained after power on and the test can be continued.

● Real-time display of the tension-displacement curve during the test.

● Communication with computer software (sold separately).

Zero Span Tensile Tester Standards

GBT 26460-2011

Zero Span Tensile Tester Technical Specification

Parameter	Technical Specification
Voltage	AC100V～240V, 50/60Hz，Maximum power consumption 100W
Working environment	Temperature (10～35)℃, relative humidity ≤85％
Display	7 inch color touch screen
Clamping force	250 kPa～1 000 kPa
Measuring range	2～250N(5～500N optional)
Indication error	±0.5％
Indication resolution	0.01N
Test speed	(25±2)N/S (per 10mm)
Stroke	6mm
Clamp width	(15±0.01)mm
Print	Built-in thermal printer
Communication Interface	RS232
Dimensions	470×440×320 mm
Net weight	≤37kg
