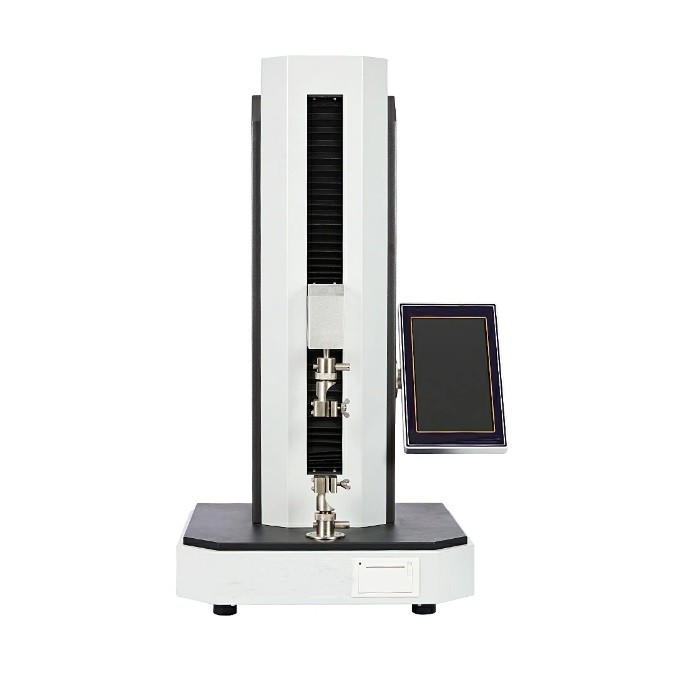

Vertical Tensile Tester

Product Item : ZY-LA
Category： Strength Tester
tensile strength tester
tensile tester
tensile testing machine
tensile testing
Product description：Tensile test machines, also known as tensile testers, are universal testing machines specially configured to evaluate the tensile strength of different kinds of specimens.
INQUIRY

Vertical Tensile Tester Introduction

Tensile test machines, also known as tensile testers, are universal testing machines specially configured to evaluate the tensile strength of different kinds of specimens such as paper, cardboard, aluminum foil, aluminum-plastic tape, plastic film, Non-woven fabric and other non-metallic materials.

Vertical Tensile Tester Application Range

● Measure tensile and tensile strength

● Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus

● Measure the peel strength of adhesive tape

Vertical Tensile Tester Features

● Closed-loop servo stepping motor, ball screw and three guide shafts provide stable and accurate transmission.

● A 10-inch color LCD touch screen is used to display the stretching curve in real time.

● The ARM processor and 24-bit analog-to-digital converter improve the response speed of the instrument and ensure the real-time performance of the measurement.

● Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.

● Features of automatic reset, data memory, overload protection and fault self-diagnosis.

● Cooperate with computer software for communication (purchased separately).

Vertical Tensile Tester Standards

GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494

Vertical Tensile Tester Technical Data

Parameter item	Technical index
Power Supply	AC(100～240)V，(50/60)Hz 100W
Working Environment	Temperature(10~35)℃, Humidity≤ 85％
Display	10 inch color touch screen
Measuring range	(0.15～30)N /(1～300)N /(1-500)N/(3～1000)N
Display resolution	0.001N(LA30) / 0.01N(LA300) / 0.01N(LA500)/ 0.01N(LA1000)
Indication error	±0.5%(Range5%～100%)
Work stroke	300mm / 1000mm(customize)
Sample width	15mm(25mm，50mmOptional)
Stretching speed	(1～500)mm/min(Can be adjusted arbitrarily)
Print	Built-in thermal printer
Communication Interface	RS232(Default) (USB, WIFI optional)
Dimension	490 ×470 ×925 mm
Net Weight	About 72kg
