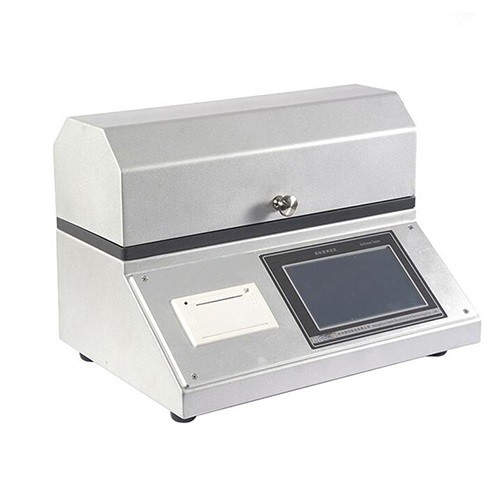

Paper Softness Tester

Product Item : ZY-RRY1000
Category： Surface Performance
softness tester
paper softness tester
softness testing
tissue sheet softness test
Product description：ZY-RRY1000 computer softness meter measuring range is (10~ 1000) mN, error of indication is ± 1%, it is widely used for paper, scientific research and quality control and other industries, departments
INQUIRY

Paper Softness Tester Introduction

Paper softness tester is a new type of high-precision intelligent tester that is researched and developed in accordance with relevant national standards and is carefully and reasonably designed with modern mechanical design concepts and micro comput processing technology. It uses professional components, supporting parts, single-chip Microcomputer, with reasonable structure and multi-functional design; it is a satisfactory experimental equipment for industries and departments such as papermaking, scientific research and quality inspection.

Paper Softness Tester Application

It is widely used to measure the tissue paper, tobacco sheet, fiber fabric, non-woven fabric, cloth, film, etc

Paper Softness Tester Features

1). One-key test, easy to understand

2). ARM processor improves the response speed of the instrument, and the calculation data is accurate and fast

3). Real-time display of pressure curve

4). Sudden power-off data storage function, the data before power-off after power-on is retained and can continue to test software and hardware over-range to ensure the safe use of sensors Cooperate with microcomputer software for communication (purchased separately)

Paper Softness Tester Standard

GB/T8942, QB/T1060, 1S0 534

Paper Softness Tester Technical Data

Parameter item	Technical index
Power Supply	AC(100～240)V，(50/60)Hz 50W
Working Environment	Temperature(10~35)℃, Humidity≤ 85％
Display	7 inch color touch screen
Measuring range	(10～1000)mN
Indication Resolution	0.1mN
Indication error	±1％(Range 5%～100%)
Total probe stroke	（12±0.5）mm (Process adjustable)
Probe indentation depth	8mm
test speed	1.2±0.012mm/s (72±0.72 mm/min) (1-250 mm/min adjustable)
Specimen table gap width	5/6.35/10/20mm (Four gears adjustable)
Slit parallelism error	≤0.05mm
Probe centering error	≤0.05mm
Print	Built-in thermal printer
Communication Interface	RS232(Default) (USB, WIFI optional)
Dimension	425×290×300 mm
Net Weight	20kg
