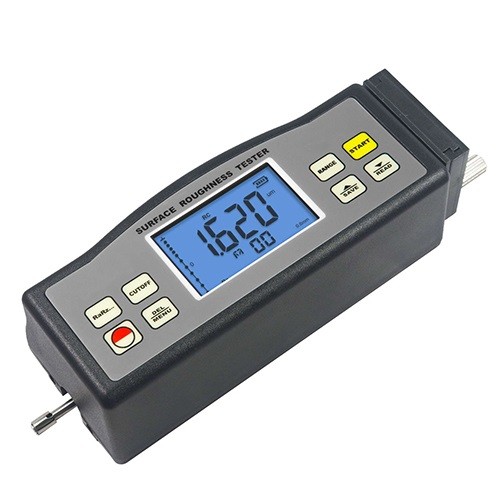

Roughness Gauge

Product Item : RT-621
Category： Coating Thickness Gauge
Roughness Gauge
Surface Roughness Tester
surface roughness tester machine
Roughness Tester
Product description：RT-621 Roughness Gauge is widely used in construction site to measure surface roughness of concrete.
INQUIRY

Surface Roughness Tester Introduction

The surface roughness tester is widely used in construction site to measure surface roughness of concrete.

Surface Roughness Tester Features

* Be compatible with four standards of ISO, DIN, ANSI and JIS.

* Multiple parameter measurement: Ra, Rz, Rq, Rt.

* Highly sophisticated inductance sensor.

* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.

* Built-in lithium rechargeable battery and control circuit with high capacity.

* Small in size, light in weight and easy to use.

* Manual or automatic shut down.

* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.

* Metric /Imperial Conversion.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Surface Roughness Tester Working Principle

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

Surface Roughness Tester Technical Specification

Standards	GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
Parameters	Ra,Rq,Rz,Rt
Measuring Range	Ra,Rq:0.005µm~20.00µm Rz,Rt:0.020µm~200.0µm
Accuracy	≤±10%
Fluctuation of Display Value	≤6%
Resolution	0.001/0.01/0.1
Sensor	Radius of Probe Pin	10µm
	Material of Probe Pin	Diamond
	Measurement Force of Probe	16mN(1.6gf)
	Probe Angle	90º
	Vertical Radius of Guiding Head	48 mm
	Maximum Driving Stroke	17.5mm/0.7inch
	Cutoff length(l)	0.25mm,0.8mm,2.5mm
Driving Speed	Sampling	When Length=0.25mm,Vt=0.135 mm/s
		When Length=0.8mm,Vt=0.5mm/s
		When Length=2.5mm,Vt=1mm/s
	Returning	Vt=1mm/s
Profile Digital Filter	RC,PC-RC,GAUSS,D-P
Evaluation Length	1L~5L Optional
Data Memorize	7 Groups
Operating Conditions	Temp:0ºC~50ºC Humidity:<80%RH
Power Supply	Bulit-in Rechargeable Li-ion Battery
Dimensioms	140mmx52mmx48mm
Weight	420g
Standard Accessories	Main Unit
	Standard Sample Plate SSP-100
	Standard Sensor SSP-100
	Small Screwdriver
	Carrying Case ( B09 )
	Operation Manual
Optinal Accessories	RS-232C Cable with Software
	Bluetooth Adapter with Software
	Extension Rod SER-150
	Groove Stylus SRP-110
	Curvature Probe SRP-120
	Measurement Stand SRS-1
