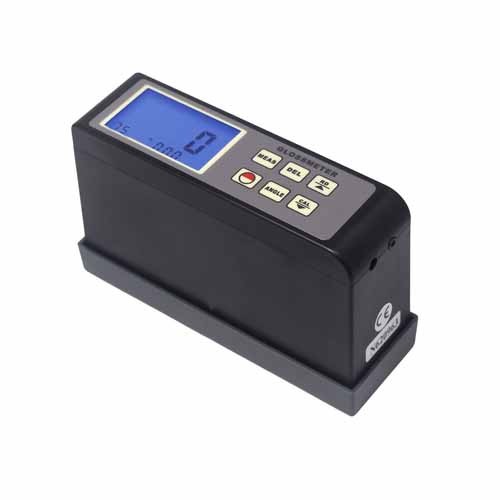

Gloss Meter GM-75

Product Item : GM-75
Category： Color and Gloss meter
gloss meter 75 degree
gloss tester
byk gloss meter
gloss tester
Product description：Gloss Meter GM-75 is gloss meter to measure 75 degree gloss. It is specially designed for paper and printing mateirals.
INQUIRY

GM-75 Gloss Meter Introduction

GM-75 gloss meter is 75 degree gloss meter and specifically designed for measuring the glossiness of paper and printing materials with measurement range 0-200GU.

GM-75 Gloss Meter Characters

1. GM-75 Gloss Meter conforms to below international standards ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN67530, ENISO7668, JISZ8741, MFT 30064 & TAPPIT480.

2. Instrument can connection with PC software by USB cable to generate and print test report.

3. Bluetooth connection to PC software is possible to be custom made.

4. High Accuracy, durable structure, lightweight appearance, and portable size

5. Automatic calibration and simple operation

6. Fully intelligent design, fast measurement. Accurate measurement and good repeatability.

7. Storage memory 254 groups of data from instrument

8. Built in high-capacity rechargeable lithium-ion battery for long time operation

9. Backlit display for easy use in dark environments

GM-75 Gloss Meter Technical Data

Model	GM-75
Display	Blue backlight, 4-digit display, 10mm LCD
Measurement Angle	75°
Measurement Range	0.1GU ~ 200GU
Gloss Unit	GU
Accuracy	±1.0
Display Resolution	0.1GU
Accuracy	±0.5 GU
Measurement Area	7mm x 14 mm (elliptic)
Storage Memory	254 Groups
Working Environment	Temperature 0ºC ~ 40°C
Working Environment	Humidity < 85% RH
Power	3.7 V Lithium Battery
Size	140mm x 45mm x 75 mm
Weight	305 g (including battery)
