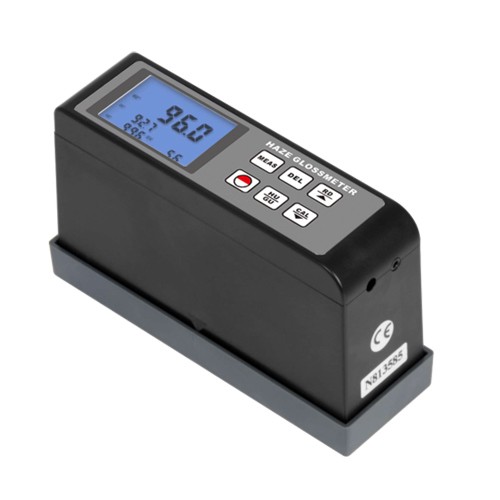

Haze and Gloss Meter HG-200 Introduction
It is designed to measure the gloss and reflection haze for floor, stones, creamic tiles, paint, ink, car body, paper and other material surfaces which need to measure gloss.Haze and gloss meter HG-200 conforms to below internation standardsASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457,ISO2813, DIN67530 ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706, and GB 8807. It Can simultaneously display gloss value of 20, 60 and 85 degree.
Why use Haze and Gloss Meter HG-200?

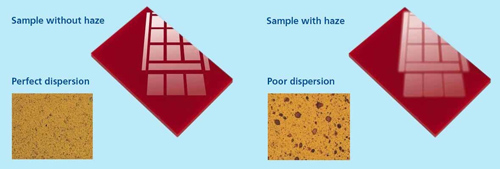

Gloss - measures the percentage of reflected light. HAZE - The optical effect caused by poor dispersion of pigments in coatings, which results in a milky appearance of the microstructure, is called haze.
Phenomenon: haze is a unique phenomenon on medium to high gloss surfaces. The medium to high gloss surface with small textures generates low intensity scattered light in the direction close to the main reflected light, but most of the incident light is reflected in a mirror image, making the surface appear to have high gloss, but the image has haze. The lower the hazereading, the better the surface quality.
High quality surfaces are expected to have a clear and brilliant appearance. Micro structures can cause a milky appearance and is often caused by production parameters like resin type, degree of dispersion or application process. Haze and gloss meter can help for the brilliant quality of samples.
Haze and Gloss Meter HG-200 Technical Data
Gloss Unit |
GU |
Gloss Measuring Range |
0GU~2000GU |
Accuracy |
±1.5 GU |
Resolution |
0.1GU,Repeatability:±0.5GU, Indication error less than ±1.2GU |
Gloss Test Angle |
20, 60 & 85 |
Haze Unit |
HU Resolution 0.1HU,Repeatability ±0.2HU, Reproducibility±1.5HU |
Test Area |
7mmx14mm (oral) |
Storage Memory |
56 Group |
Working Temperature |
0°C~40°C Relative Humidity Less than 85% |
Battery |
3.7V Lithium Battery |
Machine Size |
140mm x 45mm x 75mm |
Machine Weight |
About 310g (including battery) |

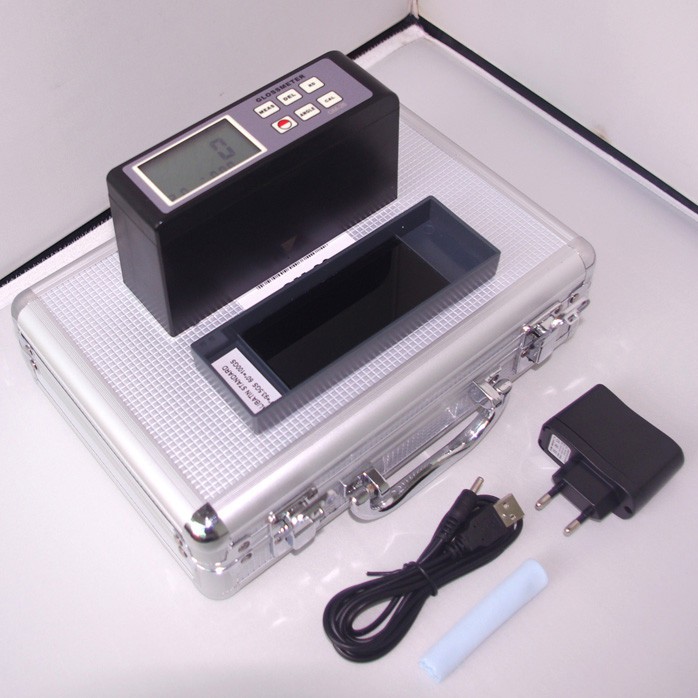

Haze and Gloss Meter HG-200 Packing List
Standard Accessory |
Haze and Gloss Meter |
1 Unit |
Cleaning Cloth |
1 Pcs |
|
Power Adapter |
1 Pcs |
|
Carrying Case |
1 Unit |
|
Operate Manual |
1 Unit |
