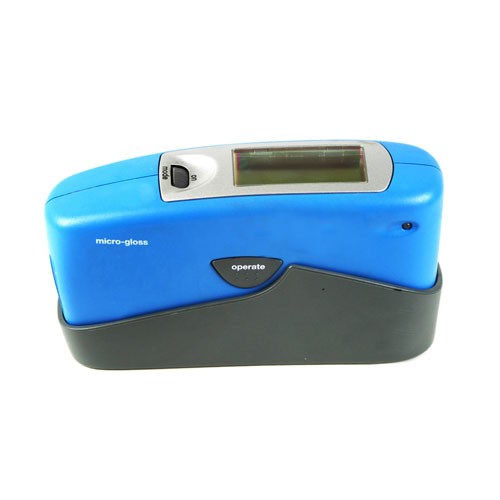

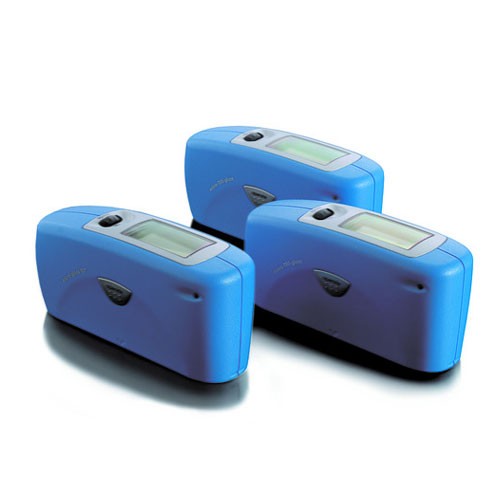

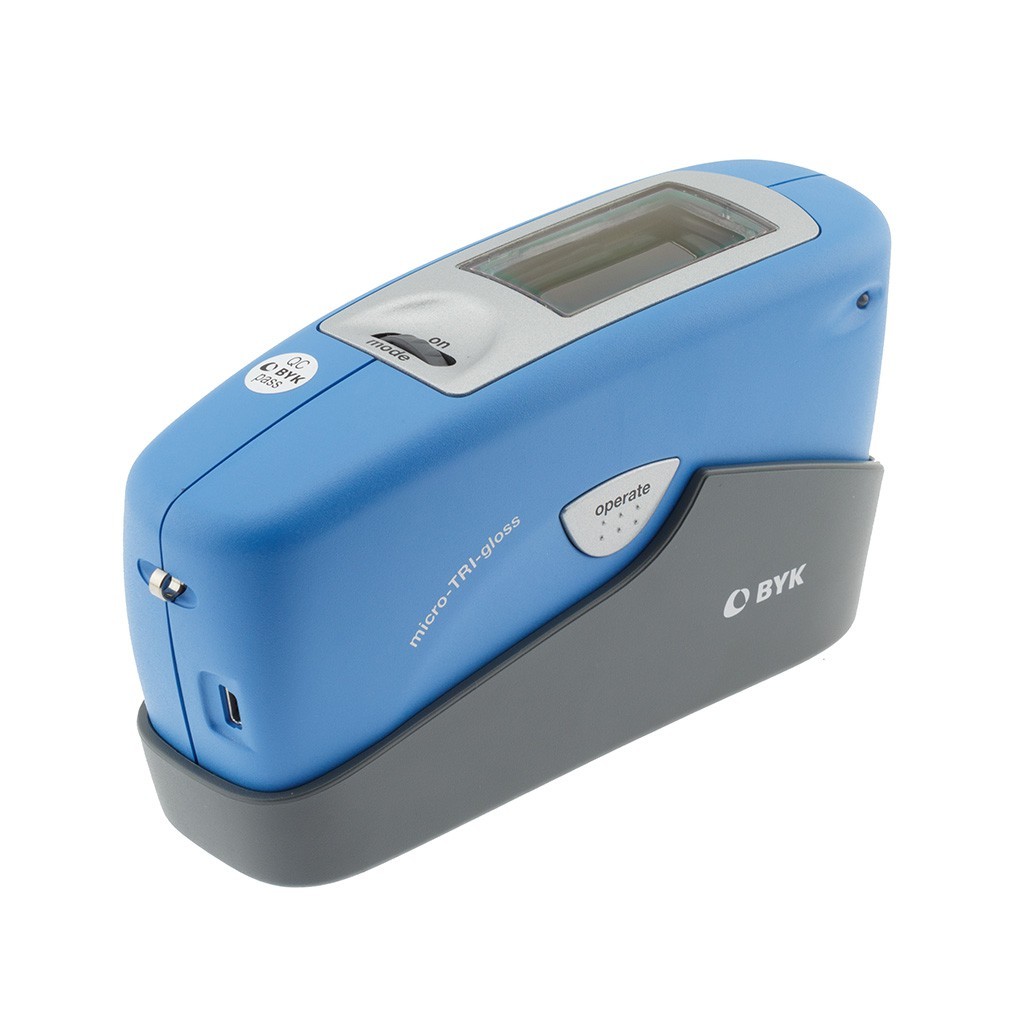

Micro-Tri-Gloss 20 60 & 85 Gloss Meter

Gloss Meter Introduction

Three angle gloss meter - see gloss changes under the right angle. In order to obtain differences clearly over the whole range from matte to high gloss, three measurement geometries were specified in international glossmeter standards. Each geometry is optimized for a specific gloss range.

The micro-TRI-gloss combines 20°, 60° and 85° in one glossmeter - having three geometries in one unit allows you to be in compliance with international standards and to quickly recognize quality variations.

• 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
• For any material: paint, plastic or even mirror-like metals
• All angles measure at the same location, and the results appear simultaneously
• Intelligent gloss measurement with smart communication
• Excellent repeatability and inter-instrument agreement guaranteed
• Intelligent auto diagnosis guarantees always accurate readings
• Brilliant color display easy to read - easy to use
• Statistics, Pass/Fail and Memory - ideal for QC and checks in the field
• Continuous mode to check uniformity over large areas
• smart-chart software: instant QC reports with trend graph and Pass/Fail limits

Gloss Meter Technical Specifications

• Geometry

  20°, 60°, 85°

• Application

  universal

• Measuring Area

  20°:  10 x 10 mm

  60°:  9 x 15 mm

  85°:  5 x 38 mm

• Measuring Area

  20°:  0.4 x 0.4 in

  60°:  0.35 x 0.6 in

  85°:  0.2 x 1.5 in

Gloss Measurement

• Measuring Range

  20°:  0 - 2000 GU

  60°:  0 - 1000 GU

  85°:  0 - 160 GU

• Repeatability

  0 - 100 GU:  ± 0.2 GU

  100 - 2000 GU:  ± 0.2 %

• Reproducibility

  0 - 100 GU:  ± 0.5 GU

  100 - 2000 GU:  ± 0.5 %

• Spectral sensitivity

  CIE standard observer for illuminant CIE-C

General Measuring time 0.5 seconds / geometry

• Memory

  999 readings with date and time

• Interface

  USB

• Languages

  English French German Italian Spanish

• Power supply

  one 1.5V AA Alkaline Battery, or via USB-port

• Battery Capacity

  4,000 readings

• Weight

  0.4 kg

• Weight

  0.9 lb

• Operating temperature

  15 - 40 °C

• Operating temperature

  60 - 104 °F

• Relative humidity

  up to 85 %, non-condensing

• Dimensions: L x W x H

  15.5 x 4.8 x 7.3 cm

• Dimensions: L x W x H

  6.1 x 1.9 x 2.9 in




Gloss Meter Standards

Gloss Meter Packing List

Gloss meter

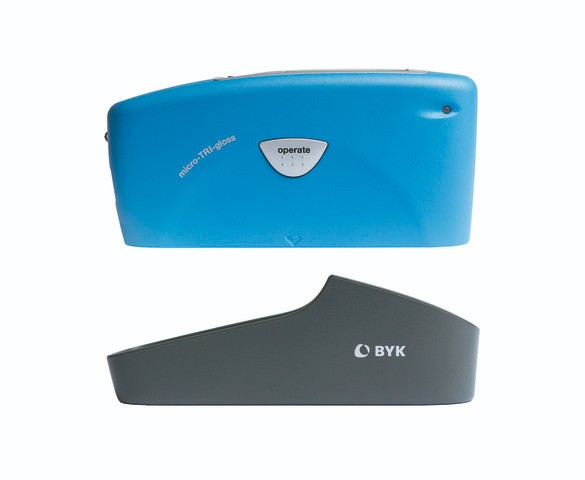

Calibration holder TRI (4447)
USB-cable micro-gloss (4405)
Software with 2 licenses for download:
smart-lab Gloss (4866) or smart-process Gloss (4867)
Battery
Traceable certificate
Manual
Carrying case
