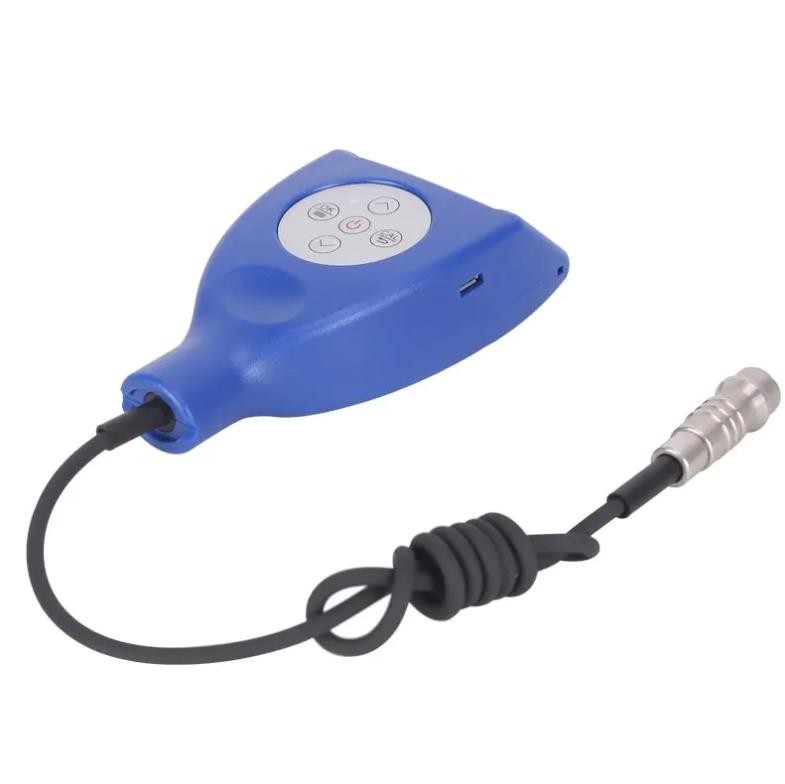

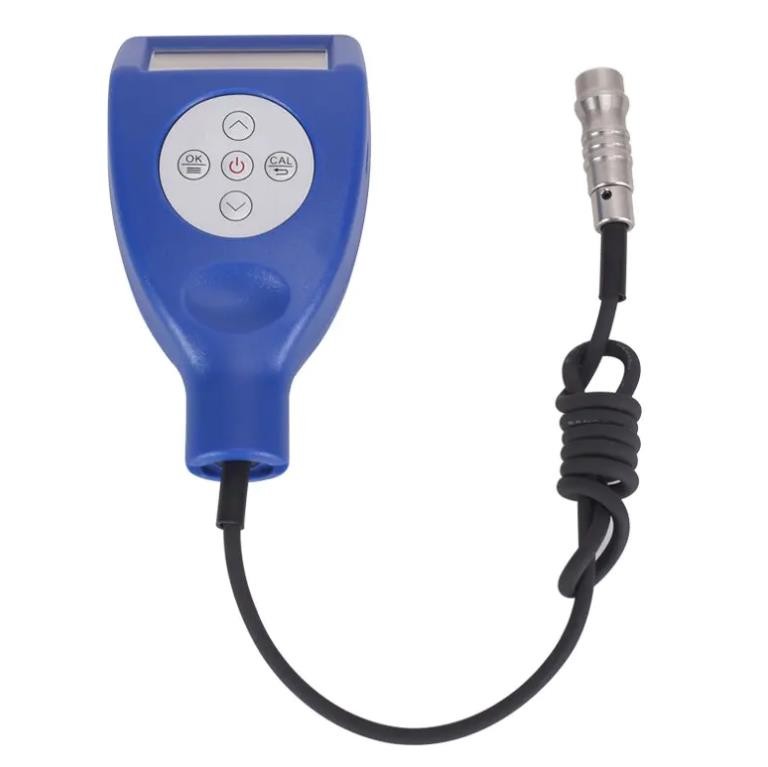

Precise Dry Film Thickness Gauge

Features :

1. Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.

2. Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.

3. Power voltage indicator.supply by USB 5V or 2 AA batteries (AA)

4. Speaker beep while operating.

5. Power-off automatically when idle; manually power-off available.

6. Negative display function to ensure the accuracy of zero point calibration.

7. Ultra-low power consumption, less than 10 μA in standby mode.

8. Operation method: Graphic menu button operation

9. Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer

10. Data transfer: USB, Bluetooth

11. PC software: Windows PC, Android App , iOS App

Technical Parameters :

Measuring Range :0-1500µm (0-1.5mm) or 0-60mil

Resolution :0.1µm (0-99.9 µm) and 1µm (over 100 µm)

Accuracy:±1-2%

Power supply: 2 x 1.5V AA Batteries

Minimum Measurement Area:5mm
