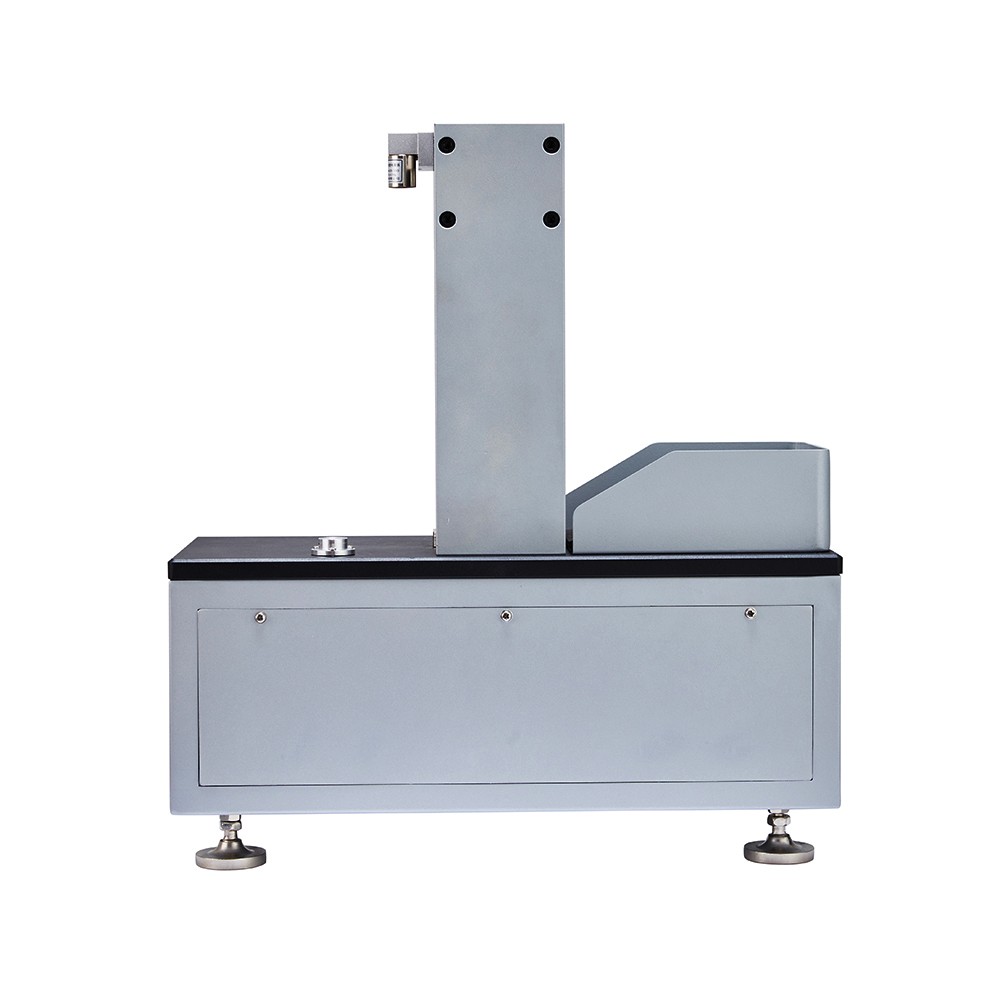

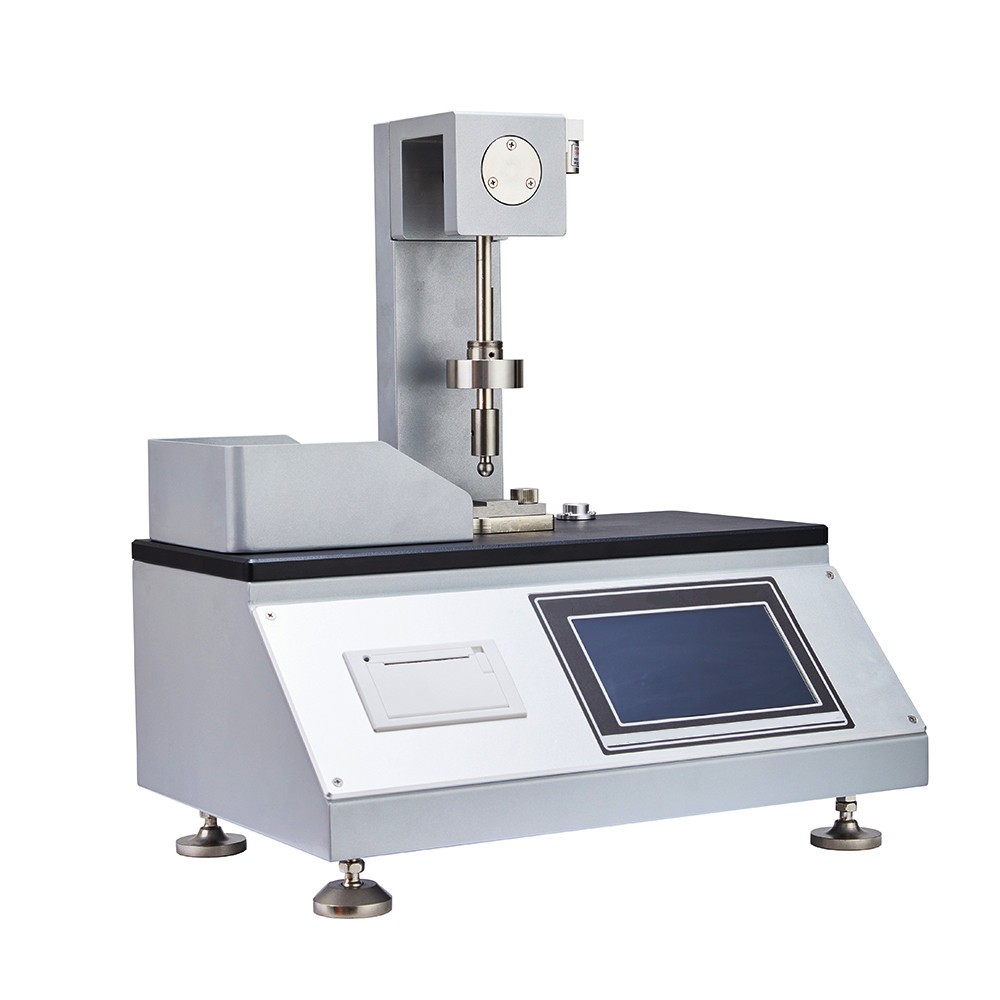

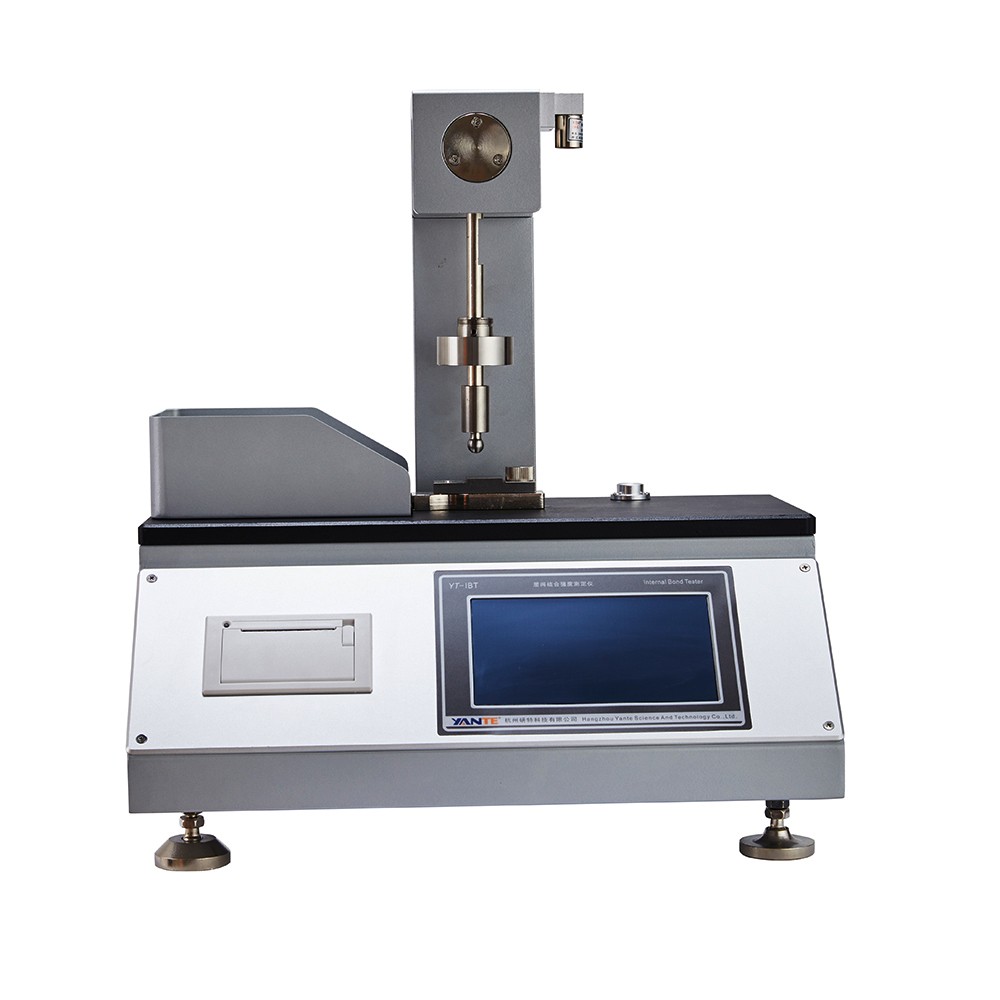

Internal Bond Tester
- Category： Strength Tester
- Measure Range : A：（20～500）J/ m² B：（500～1000）J/ m²
- Model: ZYIB-003A
- Package : Wooden Box
- Delivery:5-7 days after payment received
- Product description：Internal Bond Tester is designed to determine the internal bond strength of a variety of Paper and Board materials according to TAPPI T 569 and ISO 16260
Application:
Box board, white board, gray board, white cardboard
Products Features:
● The non-damped encoder reduces the friction of the bearing and improves the measurement accuracy.● ARM processor, 7-inch color touch screen, Chinese menu, simple and convenient operation.
● It can store 16000 sets of batch data, which is convenient for users to check historical measurement data.
● The sample preparation and test are separated, and the sample preparation adopts pneumatic pressure. Compared with ordinary hydraulic paper samplers, no maintenance such as oil injection is required.
● Communication with computer software (purchase separately)
Standards:
GB/T26203-2010
