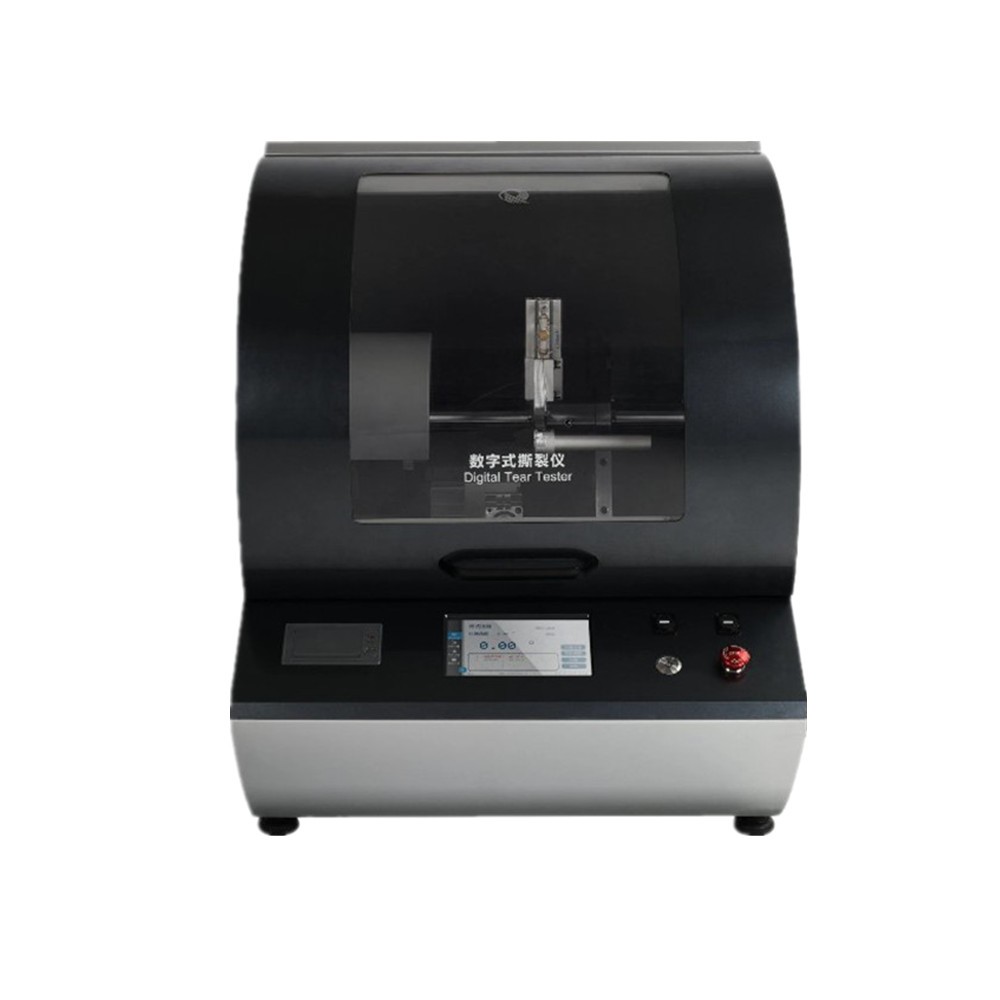

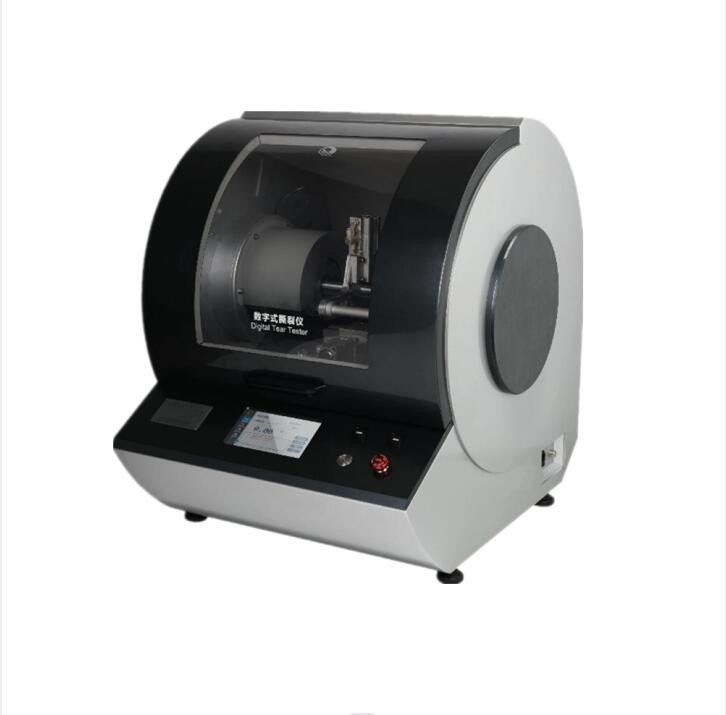

Digital Elmendorf Tearing Testing Machine

Application :

Used for the determination of tear resistance of various woven fabrics (Elmendorf method), can also be used for the determination of tear resistance of thick paper, plastic cloth, electrical tape, etc.

Standards:

GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734, etc

Features:

1, maximum 300N test range
2, microcomputer control, digital decoding, support online communication
3, color touch screen control, Chinese and English menu operation interface
4, pneumatic clamping, automatic incision
5, a variety of measurement units (CN, GF) selection
6, automatic operation, with safe operation protection.
7. Automatically increase potential energy

Technical Parameters :

1, test range: first gear: (0 ~ 16)N second gear: (0 ~ 32)N third gear: (0 ~ 64)N fourth gear: (0 ~ 128)N fifth gear: (0 ~ 300)N
2, the test accuracy: ≤± 0.2% F·S
3, tearing length: 43mm (non-standard 30-60mm can be set)
4, automatic incision length :(20±0.2)mm
5, sample size :(100×63)mm
6, sample holding: pneumatic mode
7. Sample test: at most 10 for each group at the device end, 30 groups of data can be saved
8, working power supply: AC220V±10% 50Hz 100W
9. Overall size :(650×660×680)mm
10, weight: 50kg
