Inverted Metallurgical Microscope

Product Item : ZY-MM2000
Category： Metal Testing Instrument
metallurgical microscope
microscope

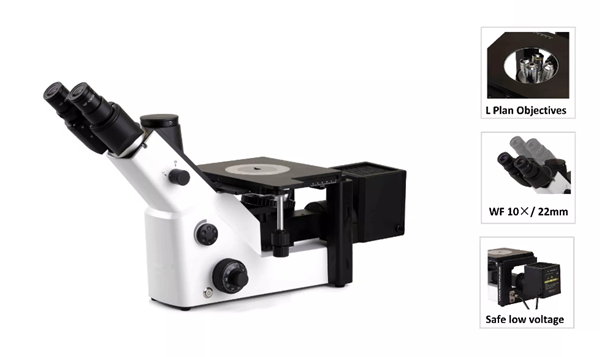

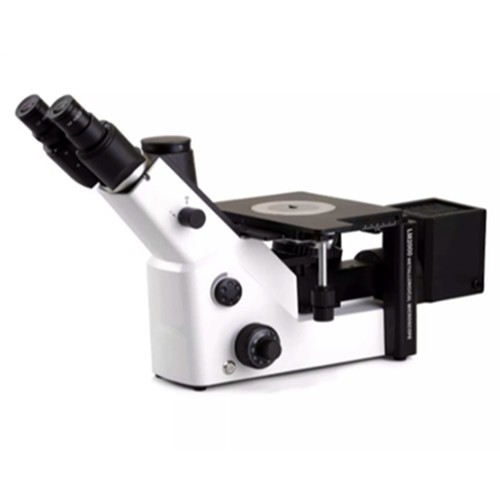

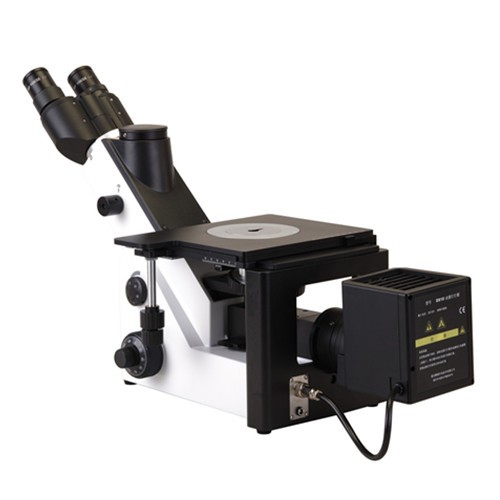

Inverted Metallurgical Microscope
Product description：Inverted metallurgical microscope is designed to check the metal, mineral, ceramic, electronic, etc.
INQUIRY

Inverted Metallurgical Microscope ZY-MM2000

Inverted Metallurgical Microscope Function and Features

● Infinity-corrected optical system. Large vision, high imaging quality & resolution

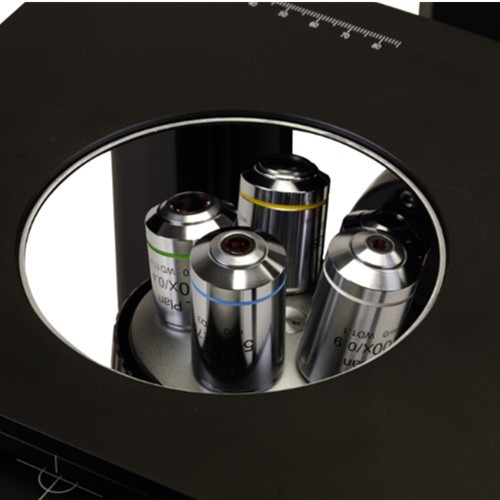

● 5pcs holes for Infinity LWD Plan Objectives : 5× ~ 100× (Dry)

● Wide field eyepiece 10x /φ22mm (Optional φ23mm)

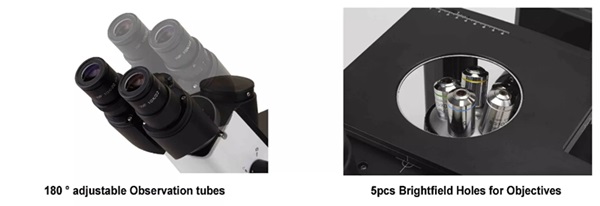

● Observation tubes can be adjusted up and down 180 ° to accommodate with different users ● High quality Reflected Illumination system

● Light source 12V/50W halogen lamp (optional 5W LED), adjustable Light Intensity

● Adopt safe electrical system: low voltage DC input 12V5A

● Optional camera and computer software for observing, taking graphs, data management ● Available upgrading with various functions & accessories to adapt to more application

Inverted Metallurgical Microscope Application

Measured sample: metal, mineral, ceramic, electronics, etc.

Application: factory testing, laboratory research, testing experiment classroom, etc.

Inverted Metallurgical Microscope Technical Data

Model	ZY-MM2000
Optical System	LIOS Optical System (Infinity-corrected)
Magnification Range	50X-1000X
Eyepiece	Widefield WF10x/ 22mm (optional φ23mm)
Objectives	Infinity LWD Plan Objectives: 5x /10x/ 20x/ 50x/ 80x/ 100x (Dry)
Tubes	Trinocular tubes, inclined 45 degree, adjustable distance 50-75mm
Light Distribution	100% for eyepiece observation 70% for eyepiece observation and 30% for camera

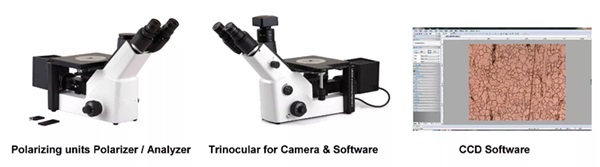

Observation Mode	Bight-field, sample polarizing (with polarizing units; Polarizer / Analyzer)
Nosepiece	Brightfield Holes: 5 pcs
Focusing Unit	Coarse and Fine Coaxial Handle Focus Stroke: 12mm, Fine handle stroke per rotation: 200μm (min. scale 2μm)
Mechanical Stage	Stage size: 210mm x 180mm, each X/Y stroke: 50x50mm, Scale: 0.1mm
Illumination	Kohler Reflected Illumination Optical System (filers are available)
Light Source	12V/50W halogen lamp / 5w LED lamp (optional) adjustable light intensity
Electronical System	Safe low voltage DC input 12V 5A Power Adepter Input Voltage: 100-240V
Output Port	For CCD / CMOS Camera & Digital Still Camera of Canon / Nikon / Olympus
Adaptor of Camera	1x / 0.75x / 0.5x C-Mount (focus adjustable)
Optional Camera & Software	CCD / CMOS industrial camera and PC software (not an analysis system)
Net Weight & Dimension	Net Weight: 12kgs Dimension: 27.5 x 68 x 37.5cm
