Ultrasonic Flaw Detector

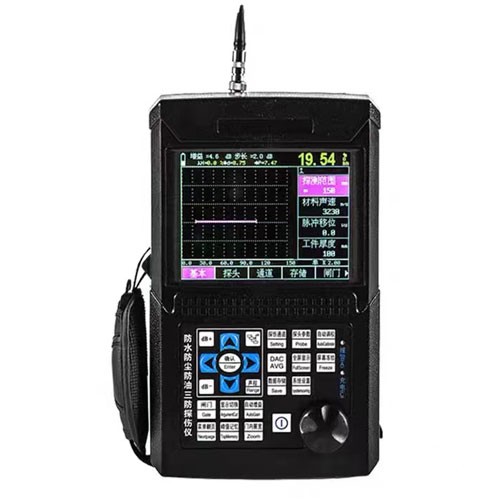

Ultrasonic Flaw Detector UFD-50 Introduction

Ultrasonic Flaw Detector Application

Ultrasonic flaw detector is specially designed for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as cracks, welds, blowhole, etc. It is widely used in the electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery and other fields.

Ultrasonic Flaw Detector Features

Probe automatic calibration

DAC and AVG are automatically formed and can be corrected and compensated

Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)

Automatically calculate the φ value equivalent defects

Storage: 980 pieces of A-scan images and data

The width and intensity of launch pulse and adjustable;

With the durable shell, oil proof, water-proof and dust-proof;

PC software is available for data analysis, management and report printing;

Power supply: rechargeable Li-ion battery, standby time more than 15 hours;

Ultrasonic Flaw Detector Technical Parameter

Ultrasonic Flaw Detector Standard Accessories

Main Body x 1
Straight Probe x 1
Angle Probe x 1
Machine-probe Cable (Q9-Q9) x 1
Power Adapter (Charger) x 1
English Manual x 1

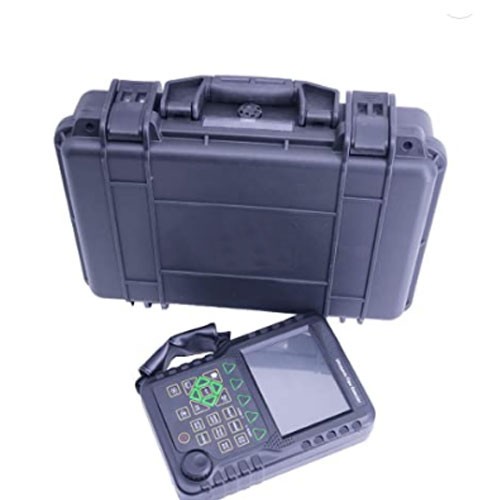

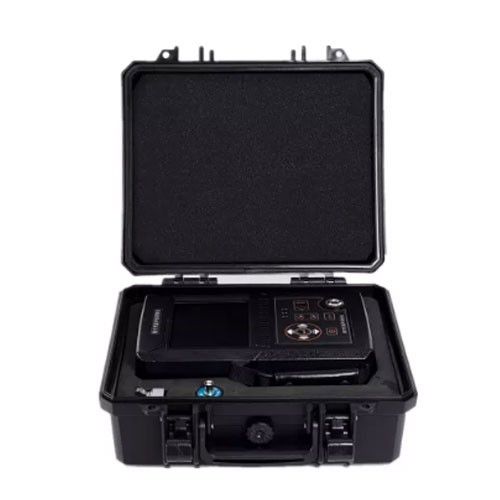

Instrument Case x 1
PC Software x 1
USB Cable x 1
