50L Humidity and Temperature Chamber

Product Item : ZYEC-50
Category： Temperature & Humidity Test Chamber
Humidity test chamber
Temperature humidity chamber
Temperature chamber
temperature test chamber
Product description：Constant temperature and humidity test chamber
INQUIRY

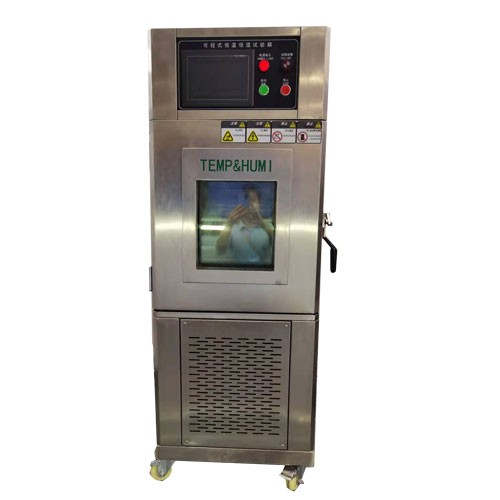

50L Constant Temperature and Humidity Test Chamber

Temperature range: -20 ~ 150℃ Humidity range: 20%~98%

Test Chamber Technical Data

◆Resolution accuracy: Temperature: ±0.01℃; Humidity : ±0.1%R.H

◆Temperature Range: -20℃~+150 ℃

◆Temperature fluctuation: ±2℃；

◆Temperature uniformity: ±2℃；

◆Humidity range: 20%～98%R.H；

◆Humidity uniformity: ±3%；

◆Heating rate: 2℃-4℃/min (From normal temperature to the highest temperature, non-linear no-load)

◆Cooling rate: 0.7℃-1℃/min(From normal temperature to the highest temperature, non-linear no-load)

Test Chamber Inner Structure

◆Chamber Internal Size: W350*D350*H400;

◆Chamber External Size: W580*D860*H1420mm;

◆Inner and outer box material: high quality stainless steel;

◆The stratospheric structure design: effectively avoid condensation on the top of the box;

◆Insulation layer: Insulation insulation layer (hard Polyurethane foam + glass wool, 100MM thick);

◆Box door: single-piece door, single window, left opening. Flat embedded handle.

◆Double-channel heat insulation and tight airtightness can effectively isolate the heat exchange between the inside and outside of the box;

◆Observation window: toughened glass, easy to observe the sample.

◆Lighting design: high-brightness window lighting, easy to observe the sample;

◆Test hole: ψ50mm on the left side of the body, with a stainless steel hole cover;

◆Machine pulley: easy to move (adjust the placement position) and powerful bolts (fixed position) to be used together;

◆Box built-in shelf: stainless steel SUS #304 square punching steel plate shelf 1 piece and 4 sets of rails (adjust the spacing)；

Test Chamber Refrigeration system

◆ Refrigeration system: using French Taikang compressors, European and American high-efficiency power-saving ultra-low temperature refrigeration systems (air-cooled heat dissipation method);

◆ Cold and heat exchange system: Ultra-high efficiency SWEP refrigerant cold and heat exchange design (environmental protection refrigerant R404A);

◆ Heating load adjustment: Automatically adjust the refrigerant flow rate to effectively take away the heat emitted by the heating load;

◆ Condenser: Fin type motor with heat dissipation;

◆ Evaporator: fin type multi-stage automatic load capacity adjustment;

◆ Other accessories: desiccant, refrigerant flow window, repair valve;

◆ Expansion system: capacity control refrigeration system.

Test Chamber Control System

◆ Control system: programmable color screen touch screen temperature controller

◆ Chinese and English liquid crystal display LCD touch panel, screen dialogue type input data, temperature and humidity can be programmed at the same time, back light 17-segment adjustable, curve display, set value/display value curve. Various alarms can be displayed separately. When a fault occurs, the fault can be displayed on the screen to eliminate the fault and eliminate the mis-operation. Multiple groups of PID control functions, precise monitoring functions, and displayed on the screen in the form of data.

Test Chamber Safety Protection System

◆ Over-temperature protector;

◆ Zero-crossing brake fluid power controller;

◆ 1 air burning prevention protector;

◆ Compressor high pressure protection switch;

◆ Compress or over heating protection switch;

◆ Compress or over current protection switch;

◆ No fuse switch;

◆ Ceramic fast fuse;

◆ Line fuse and fully sheathed terminal;

◆ Buzzer;

Test Chamber Working Environment
