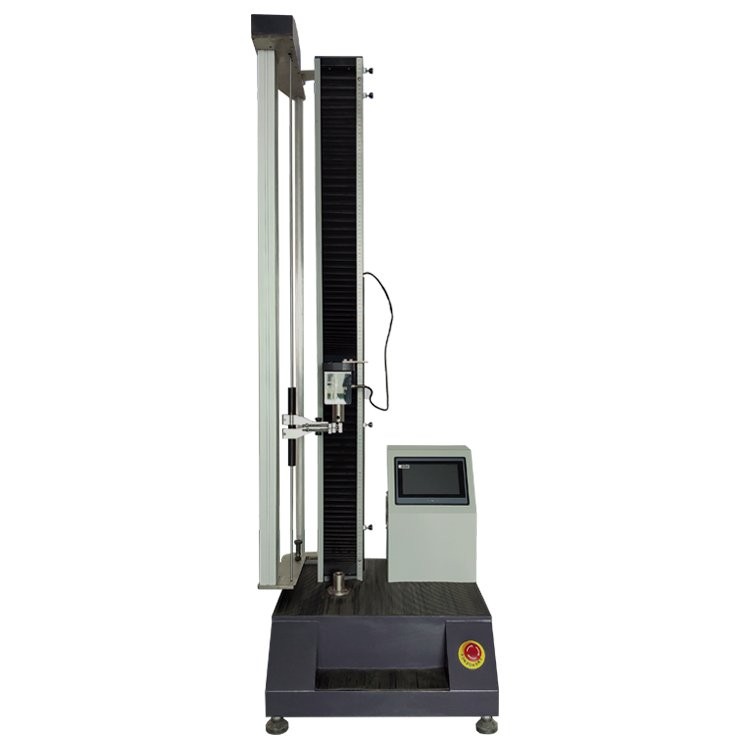

Single-column Tensile Testing Machine

  • Product Item : ZYTM-621
  • Category: Tensile Testing Machine
  • tensile machine
  • tensile testing machine
  • tensile tester
  • Universal Testing Machine
  • Product description:single column tensile testing machine can provide tensile from 100N to 5KN for the tensile testing of plastic film, textile, cable and other materials need to test tensile.
  • INQUIRY

Single-column Tensile Testing Machine


Tensile Testing Machine Introduction

ZYTM-621 is single column tensile testing machine. It can be used to test metal, nonmetal, composite materials and products such as tension, compression, bending, cutting, tearing, peeling, etc. It can work with the window operating system platform, the graphical and graphical software interface, and the flexible data processing method, which greatly facilitate the debugging ability. It can be used for various enterprises to analyze the mechanical properties of various materials and inspect the production quality.


Tensile Testing Machine Application

The tensile testing machine is also suitable for all kinds of disposable masks and surgical masks for regular mechanics performance test, also widely used in medical equipment resistance to bending, a scalpel (needle sharpness, syringe sliding performance, body fit) detection, such as fiber, plastics, paper, cardboard, film and other non-metallic materials jacking, packing heat sealing strength, tear, drawing, piercing and compression, bottle breaking strength, 180 degrees 90 degrees stripping, stripping, shear force and thermal bonding strength test project.

Testing machine operation:Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.


Tensile Testing Machine Technical Data

0

Load Cell

100N, 200N, 500N, 1000N, 2000N, 5000N

Accuracy

+/-0.5% of Indication Value

Strength Resolution

1/200,000

Drive System

AC Servo

Unit Switch

Kg, N, KN, LB, mm, Inch

Travel distance

600mm (other travel distance according to requirement)

Extension resolution

Min 0.00004mm

Speed

0.001mm-999mm/min (adjustable)

Speed Accuracy

+/-0.5%(1-500mm/min)

Data acquisition rate

Max 1000Hz

Position Measurement

Omron Encoder

Software

Included with analysis and results output software

Tension Grips

According to to different material

Compression Plate

Diameter: 100mm

Power

220V, 50Hz, Single Phrase or custom made voltage and phrase

Dimension

69×50×189cm not including the base

Weight

92Kgs
