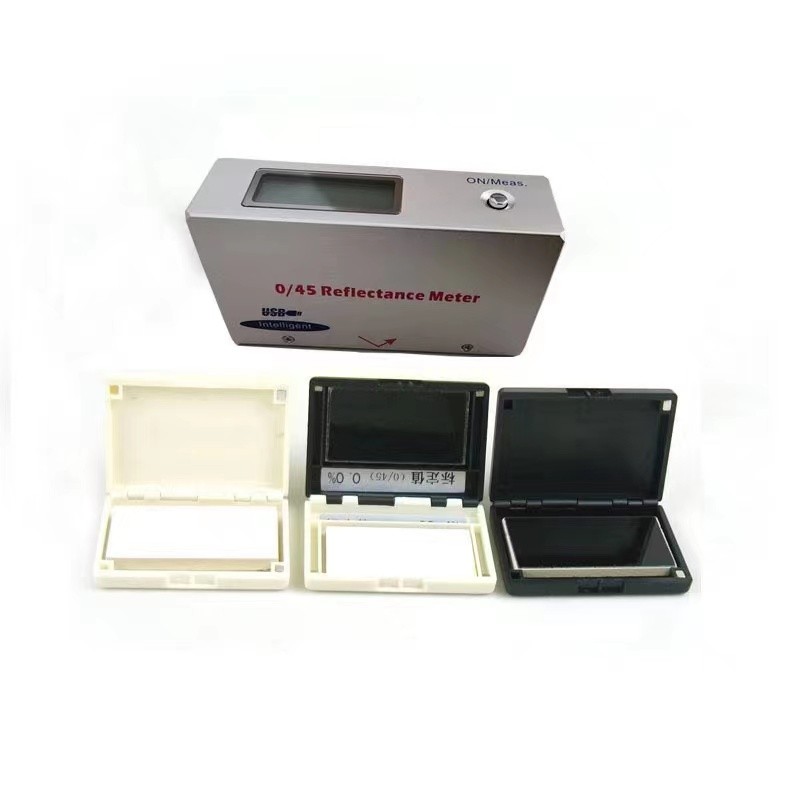

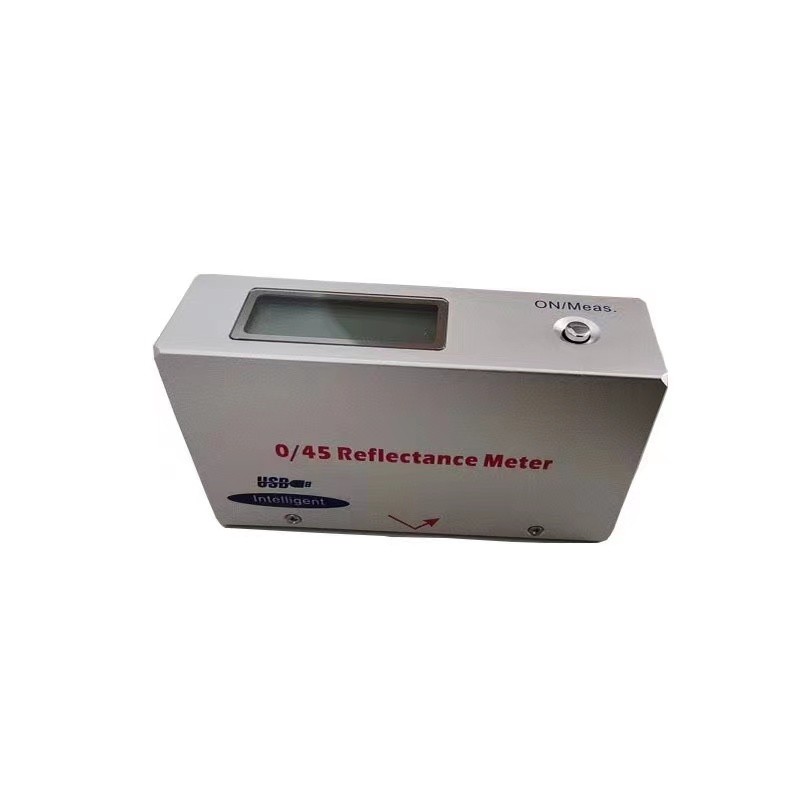

Portable Reflectance Meter/Opacity Meter

Category： Film Physical Performance
Brand : ZHIYI
Model : ZY 583
Package : Carton
Delivery: 5-7 days after payment received
Product description：Opacity Meter is used to measure the opacity, or luminous reflectance, of a grey scale. Suitable for the evaluation of coatings hiding power/opacity, or simple shade sorting tasks of metallized films,
INQUIRY

Portable Reflectance Meter / Opacity Meter

1. Introduction

Opacity Meter is used to measure the opacity, or luminous reflectance, of a grey scale. Suitable for the evaluation of coatings hiding power/opacity, or simple shade sorting tasks of metallized films, anodized aluminum or ceramics. It can calculate the contrast ratio (opacity) and store it. The operator can call up the data when required. It complies with ISO 2814,ISO 3906 , ISO 6504,BS 3900 and DIN 55984.

2. Feature

♦ Small and light weight, easy to be carried and used.

♦ Auto zero calibration, easy for operation.

♦ One 1.5V alkaline Battery can be used for almost 60 hours and 10000 readings.

♦ Long-term stable light source.

♦ Special moisture-proofing process, allows to use in a variety of harsh environments.

♦ National calibration white tile to transfer standard value, accurate and reliable.

3. Technical Data

Model	ZY 583 Opacity Meter
Working angle	45°(irradiate),0°(receive);CIE Illuminant C
Range of Measurement	0-100 units
Resolution	0.1%
Accuracy	±1 unit or 1% (full scale)
Power Supply	One 1.5V alkaline battery or rechargeable
Screen Size	12×17mm(ellipse)
Instrument Size	114×32×64mm
Instrument Weight	180g
Testing Environment	10-40 ℃, relative humidity should not be less than 85%
