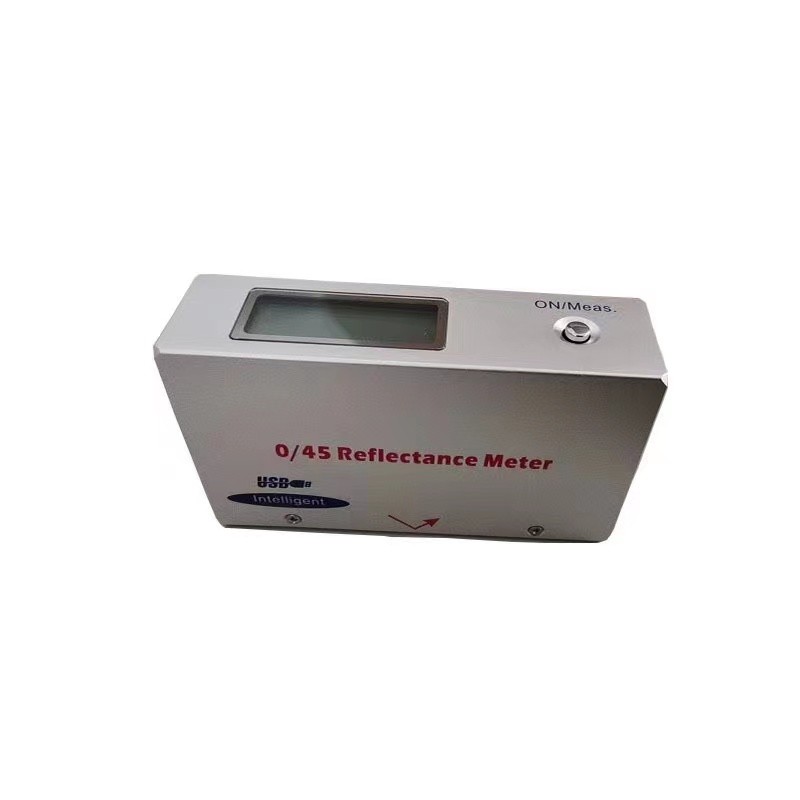

Portable Reflectance Meter / Opacity Meter



1. Introduction

Opacity Meter is used to measure the opacity, or luminous reflectance, of a grey scale. Suitable for the evaluation of coatings hiding power/opacity, or simple shade sorting tasks of metallized films, anodized aluminum or ceramics. It can calculate the contrast ratio (opacity) and store it. The operator can call up the data when required. It complies with ISO 2814,ISO 3906 , ISO 6504,BS 3900 and DIN 55984.



2. Feature

♦ Small and light weight, easy to be carried and used.

♦ Auto zero calibration, easy for operation.

♦ One 1.5V alkaline Battery can be used for almost 60 hours and 10000 readings.

♦ Long-term stable light source.

♦ Special moisture-proofing process, allows to use in a variety of harsh environments.

♦ National calibration white tile to transfer standard value, accurate and reliable.


3. Technical Data

Model

ZY 583 Opacity Meter

Working angle

45°(irradiate),0°(receive);CIE Illuminant C

Range of Measurement

0-100 units

Resolution

0.1%

Accuracy

±1 unit or 1% (full scale)

Power Supply

One 1.5V alkaline battery or rechargeable

Screen Size

12×17mm(ellipse)

Instrument Size

114×32×64mm

Instrument Weight

180g

Testing Environment

10-40 , relative humidity should not be less than 85%

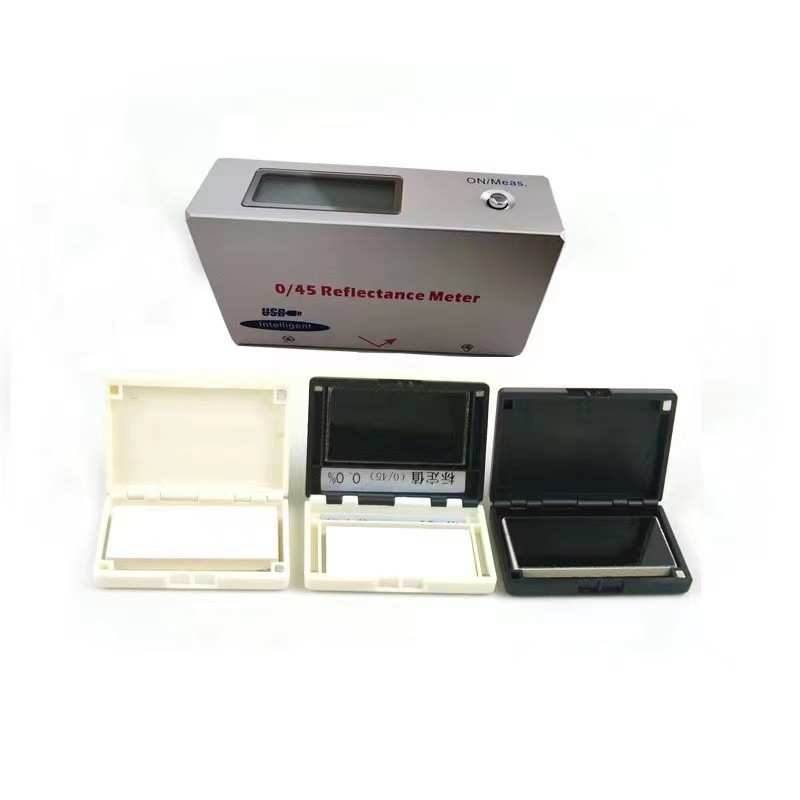

6. Packing List

Name

Qty.

Name

Qty.

Plastic Packing Box

1

Calibration Tile

1

Main Instrument

1

White Tile

1

Operate Manual

1

USB Cable

1
