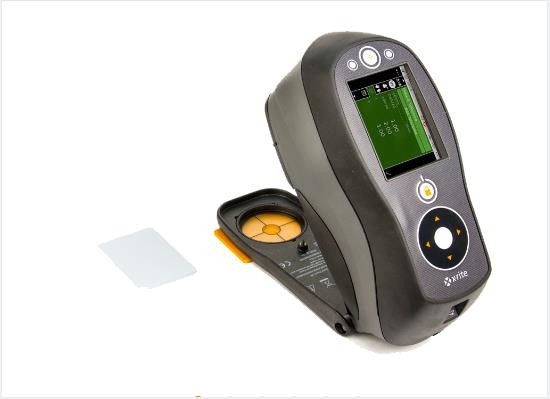

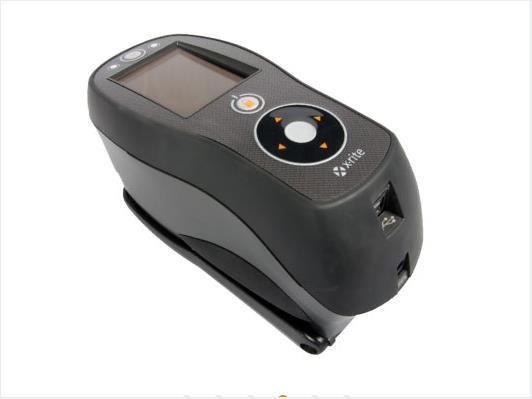

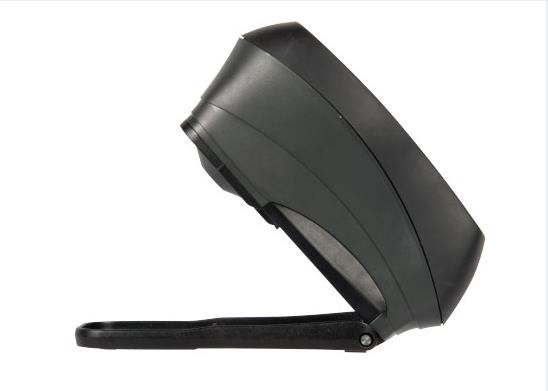

Xrite Ci60 Portable Spectrophotometer

Category： Color and Gloss meter
Brand: Xrite
Model: Ci60
Package : Carton
Delivery: 10-15 days after payment received
Product description：Entry-level quality control device ideal for inspecting incoming goods Eliminates visual evaluation errors between samples using pass/fail indicators on the device Easy setup with configurable menus
INQUIRY

Battery	Li-ion
Battery Life	1000 measurements @ 10 sec intervals
Calibration	White and Zero
Color Differences	[√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔLab, ΔYxy, , ΔLCh°, ΔLuv, Verbal Difference
Color Spaces	Lab, Lab, Reflectance, LCh°, Munsell Notation, XYZ, Yxy, Luv
Dimensions (length, width, height)	21.3 cm 9.1 cm 10.9 cm
Humidity	5% to 85%, non-condensing
Illuminants	A, C, D50, D65, F2, F7, F11 & F12
Illumination Spot Size	14mm
Import/Export Format	CSV

Instrument Display	Backlit Color Graphic LCD
Inter-Instrument Agreement	0.40 ΔE*ab avg.
Lamp Life	Approx. 500,000 measurements
Languages Supported	English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese
Light Source	Gas-filled tungsten lamp
Measurement Cycle Time	≈ 2 seconds
Measurement Geometry	d/8°
Measurement Spot	8mm
Measurement Time	≈ 2 seconds
Observers	2° & 10°
Operating Temperature Range	50° to 104°F (10° to 40°C)
Package Dimensions (length, width, height)	51cm, 20cm, 41cm
Pass / Fail	Yes
Photometric Range	0 to 200%
Photometric Resolution	0.01%
Reflectance Aperture(s)	1
Sample/Measurement	4000
Sample Preview	Targeting window
Shipped Weight	'7kg
Short Term Repeatability - White	.10 ΔE*ab on white ceramic
Software Development Kit	XDS4
Spectral Analyzer	Blue-enhanced silicon photodiodes
Spectral Interval	10nm
Spectral Range	400nm-700nm
Spectral Reporting	10nm
Standard Indices	[√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort
Standards	1000
Storage Temperature Range	'-4° to 122°F (-20° to 50°C)
Transform Support	Embedded
Voltage	100-240VAC 50/60Hz, 12VDC @ 2.5A
Warranty	12 months
Weight	1.06 kg
