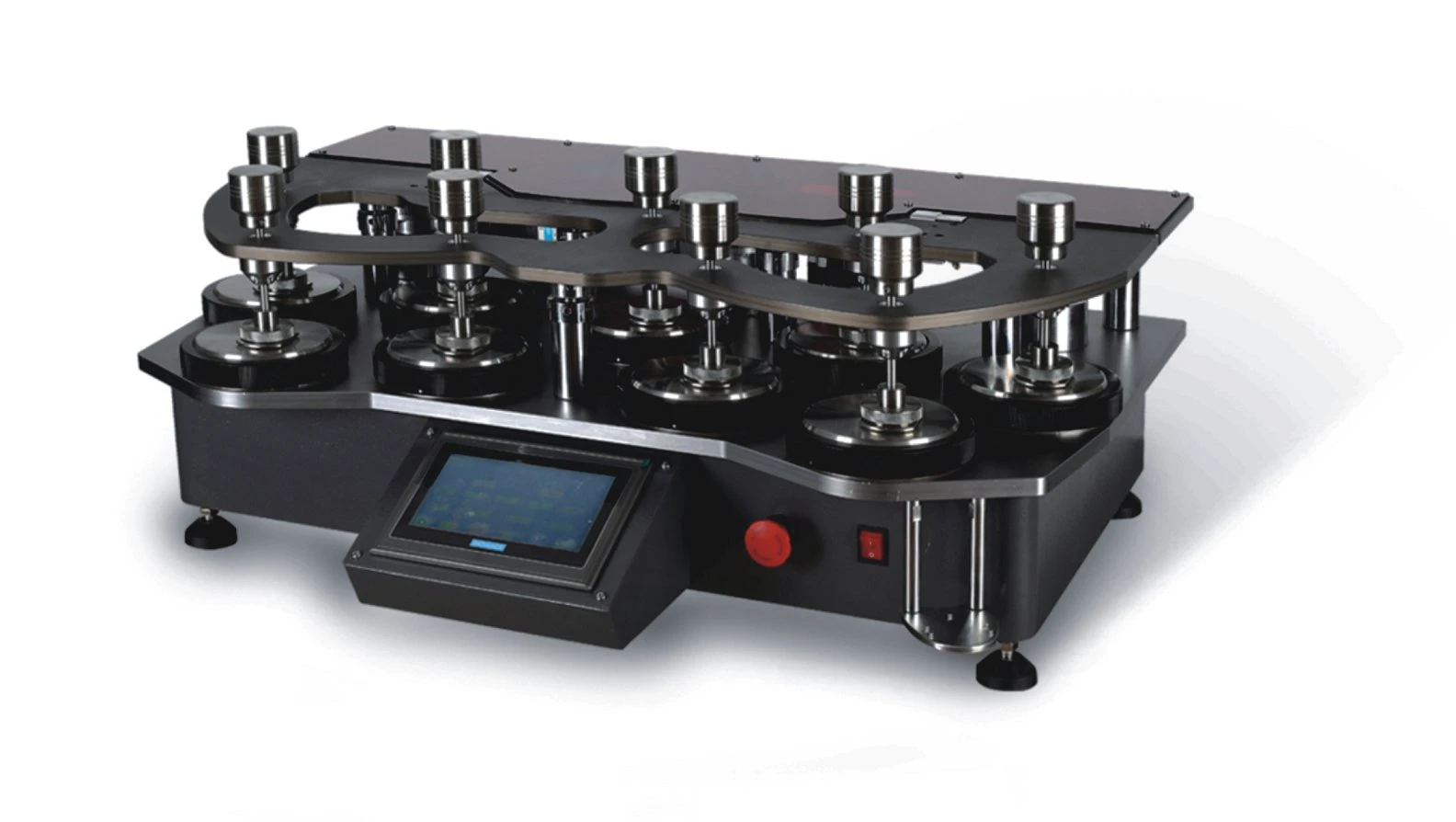

Martindale Abrasion And Pilling Tester

Category： Textile Testing Equipment
Number of working stations: 9
Model No: ZYWR-001T
Package :Wooden box
Delivery: 5-7 days after payment received
Product description：Martindale Abrasion And Pilling Tester for testing the abrasion and pilling resistance of all types of fabrics and other materials.
INQUIRY

Poroducts Features :

1. Three test modes, plus and minus two counting modes.
2, no turning guide design, loading without moving.
3, PLC modular control, 7-inch color touch screen, Bilingual menu operation.

Technical Parameters :

1. Number of working stations: 9
2, counting range :(0 ~ 999999) times
3 maximum range: (60.5±0.5)mm (24±0.5)mm
4. Pressurized material quality: a. Garment sample weight: (397±2)g
B. Furniture decoration sample weight :(597±2)g
C. Stainless steel discs :(260±1)g
5. Effective friction diameter of grinding block:
Type A 198g(3kpa) friction head φ (28.8-0.084)mm
Type B 155G (1.52N) friction head φ (90-0.10)mm
6. Relative movement speed of gripper and grinding platform :(50±0.5)r/mi(adjustable 20-70r/min)
7. Sample pressure hammer mass :(2385±10)g
8. Overall size :(885×610×290)mm
9. Power supply: AC220V±10% 50Hz 500W
10. Weight: 81 kg

Standard :

GB/T21196 (National standard drafting unit), FZ/T20020, GB/T4802.2, GB/T13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO12945.2, ISO12947, JIS L1096, IWSTM196/TM112 M&S, etc
