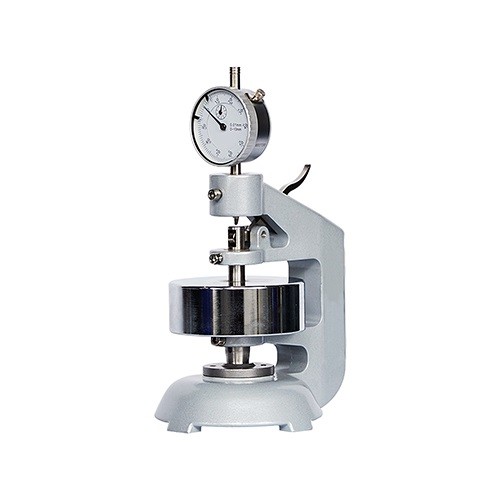

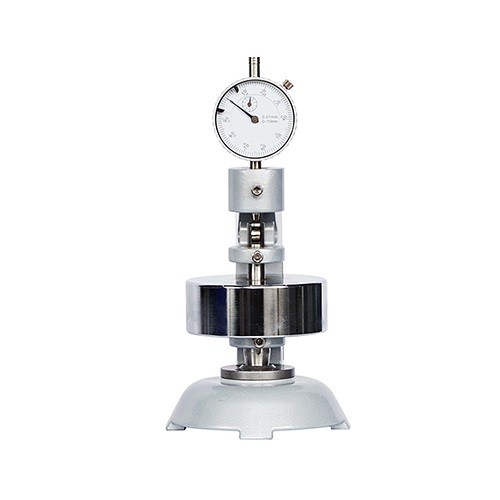

Paper Thickness Tester

Product Item : ZY-H4
Category： Surface Performance
Paper Thickness Tester
Paper Thickness Testing machine
paper thickness gauge
paper thickness gauge micrometer
Product description：Paper thickness gauge is mainly use to measure the thickness of paper. It is suitable to measure 0-4mm with display accuracy 0.01 to 0.001.
INQUIRY

Paper Thickness Tester Introduction

Paper thickness gauge is mainly use to measure the thickness of paper. It is suitable to measure 0-4mm with display accuracy 0.01 to 0.001.

Paper Thickness Tester Technical Data

Model Parameters	ZY-H4A (Digital dial indicator)	ZY-H4B (Pointer dial indicator)	ZY-H4C (Digital dial indicator)
Measuring Range	(0～4)mm	(0～4)mm	（0～4）mm
Dividing	0.01mm	0.01mm	0.001mm
Contact Pressure	（100±10）kPa
Contact Area	（200±5）mm²
Parallelism of Surface Measurement	≤0.005mm
Indication error	±0.5％
Indication variability	≤0.5％
Dimension	166 mm×125 mm×260 mm
Net weight	4.5kg around
