Ford Cups

Product Item : ZHIYI 25-120
Category： Viscosity
Product description：Ford Cups
INQUIRY

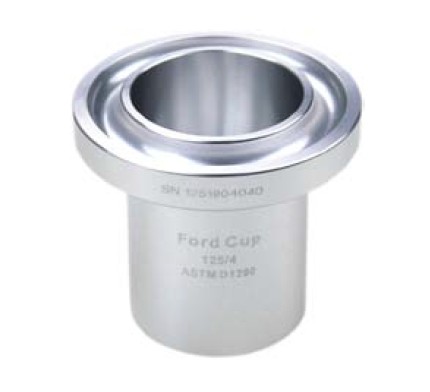

Ford Cups is produced in accordance with International Standard ASTM D1200, D333, D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All our Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.

Technical Parameters :

*Internal Diameter: 50 ±0.05mm

*Outer Diameter: 86±0.1mm

*Internal Orifice Length: 10±0.1mm

*Come with calibration certificate

Detail Description :

Details/Ford Cup	Ford Cup (No.2)	Ford Cup( No.3)	Ford Cup( No.4)	Ford Cup( No.5)	Hand-Held Ford Cup( No.4)
Internal Vertical Height (mm)	43±0.1	43±0.1	43±0.1	43±0.1	43±0.1
Internal Orifice φ（mm）	2.53	3.40	4.12	5.20	4.12
External Orifice φ（mm）	5.0±0.5	5.5±0.5	6.0±0.5	7.6±0.5	6.0±0.5
Measurement Range (cSt）	25-120	49-220	70-370	215-1413	70-370
Suitable Flow Time( Sec）	40-100	25-105	20-105	20-105	20-105
Model information	ZHIYI 25-120	ZHIYI 49-220	ZHIYI 70-370	ZHIYI 215-1413	ZHIYI-HAND 70-370
