Gloss Meter GM-45

Product Item : GM-45
Category： Film Physical Performance
gloss meter 45 degree
gloss tester
byk gloss meter
glossiness tester
Product description：Gloss Meter GM-45 is gloss meter to measure 45 degree gloss. It is specially designed for plastic film, ceramic, textile and anodized alumina. It conforms to ASTMD-523,ASTMD1455 ASTM C346,ASTMC584,AST
INQUIRY

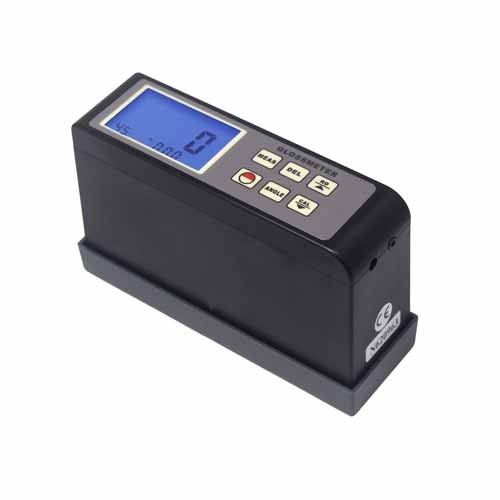

GM-45 Gloss Meter Introduction

GM-45 gloss meter is 45 degree gloss meter and it is specially designed for plastic film, ceramic, textile and anodized alumina with measurement range 0-200GU.

GM-45 Gloss Meter Characters

1. GM-75 Gloss Meter conforms to below international standards ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN6730, ENISO7668, JISZ8741, MFT30064 & TAPPIT480.

2. Instrument can connection with PC software by USB cable to generate and print test report.

3. Bluetooth connection to PC software is possible to be custom made.

4. High Accuracy, durable structure, lightweight appearance, and portable size

5. Automatic calibration and simple operation

6. Fully intelligent design, fast measurement. Accurate measurement and good repeatability.

7. Storage memory 254 groups of data from instrument

8. Built in high-capacity rechargeable lithium-ion battery for long time operation

9. Backlit display for easy use in dark environments

GM-45 Gloss Meter Technical Data

Model	GM-45
Display	Blue backlight, 4-digit display, 10mm LCD
Measurement Angle	45
Measurement Range	0.1GU ~ 200GU
Gloss Unit	GU
Accuracy	±1.0
Display Resolution	0.1GU
Accuracy	±0.5 GU
Measurement Area	7mm x 14 mm (elliptic)
Storage Memory	254 Groups
Working Environment	Temperature 0ºC ~ 40°C
Working Environment	Humidity < 85% RH
Power	3.7 V Lithium Battery
Size	140mm x 45mm x 75 mm
Weight	305 g (including battery)
