Friction Coefficient Tester

Product Item : ZY-MC05
Category： Surface Performance
Friction Coefficient Tester
Abrasion resistance testing
Abrasion resistance testing machine
Product description：The friction coefficient tester is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets. it can intuitively understand the slipperiness and open
INQUIRY

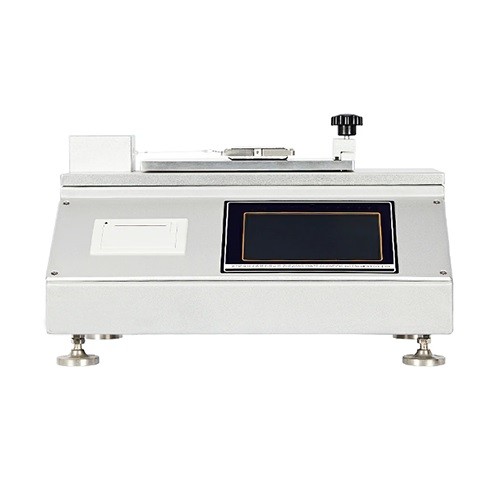

Friction Coefficient Tester Introduction

The friction coefficient tester is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets. it can intuitively understand the slipperiness and opening of the film, and display the distribution of the slip agent through the curve. By measuring the smoothness of the material, it is possible to control and adjust the opening of the packaging bag, the packaging speed of the packaging machine and other production quality process indicators to meet the product use requirements.

Friction Coefficient Tester Application Range

Plastic film and sheet

Friction Coefficient Tester Features

● ARM processor, 7-inch large-screen color touch screen

● Test data memory function, high-speed thermal printer print output, fully automatic test function

● Test data statistical processing function, real-time display of test data and curves

● The closed-loop servo motor drives the precision ball screw to ensure accurate displacement, smooth operation and low noise.

● Cooperate with computer software for communication (purchased separately)

Friction Coefficient Tester Standard

GB10006-1988

Friction Coefficient Tester Technical Data

Parameter item	Technical index
Power Supply	AC(100～240)V，(50/60)Hz 100W
Working Environment	Temperature(10~35)℃, Humidity≤ 85％
Display	800×480 7 inch color touch screen
Force measuring range	（0.05～10）N
Resolution	0.001N
Slider size	63×63 mm
Slider weight	200±2g（For Paper 800g customizable）
Test bench size	200×455 mm
Measurement accuracy	±0.5%(Range 5%～100%)
Slider movement speed	（100±10）mm/min
Slide stroke	100 mm
Communication Interface	RS232(Default) (USB, WIFI optional)
Dimension	460×330×280 mm
Net Weight	17.5kg around
