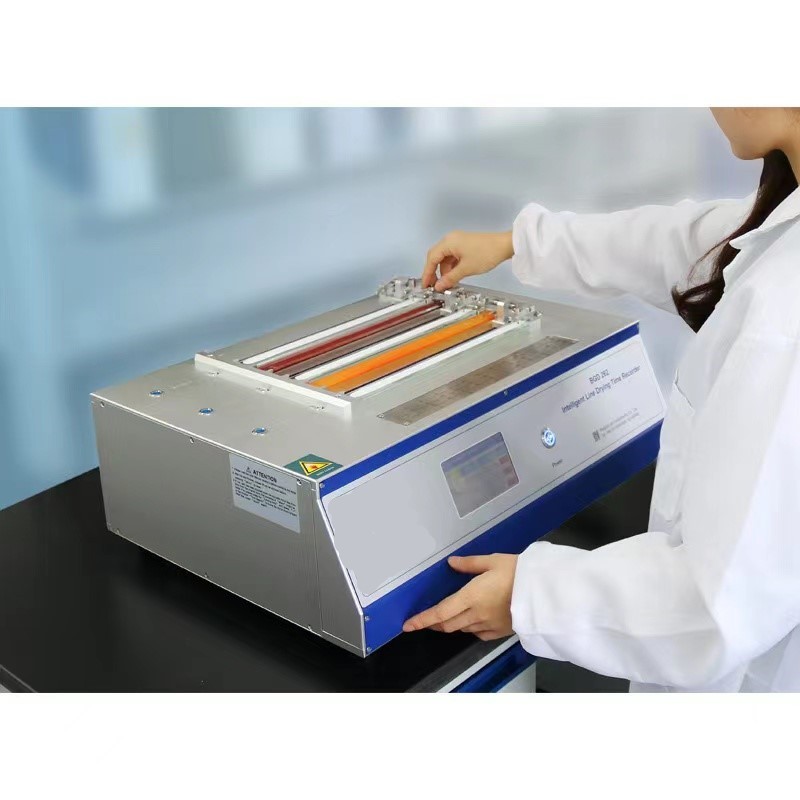

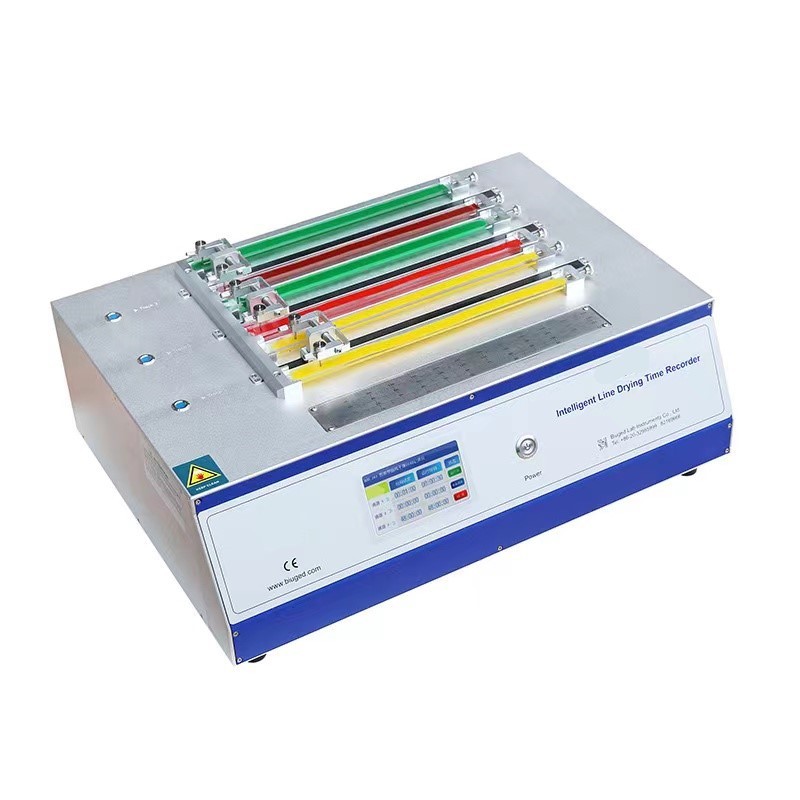

Intelligent Line Drying Time Recorder

this is a powerful and intelligent line drying time recorder which can meets with all different requirements about analyzing Tdifferent samples'drying performance. It has three idividual pairs of tracks each channel has two working channels .

Main features as below:
*Big size touch screen 5 inch and shows three channels working parameters at the same time
*Very easy and convenient to set working parameters
*Broad and flexible time range: can be set varying from 4 minutes up to 48 hours. This makes the Drying Time Recorder suitable for fast drying waterborne coatings as well as very slow drying paints that may need days to dry.

*Uses photoelectric sensor to accumulate and show real-time position, and can achieve accurate position which precisely corresponds to working time

*With motor drive controlling system which has our own intellectual property to ensure high precision location.

*Each channel has LED indicator light to show this channel is working or not.
*Come with 6 pcs stainless steel weights 5 gram per weight for recording through drying
*Come with calibration certificate

*Comply with standards: ASTM D 5895-03, ISO 9117-4

Main Technical Parameters :

*Workin Tracks : 3 pairs individual tracks ,each track includes two working channels

* Setting range for working time :4 minutes-48hours( each track can be set individually)

* Styli Diameter: with rounded trip :2mm±0.05mm(6 pcs)

*Power :200W

*Overall size :600mmx430mmx240mm

*Net weight :27kg
