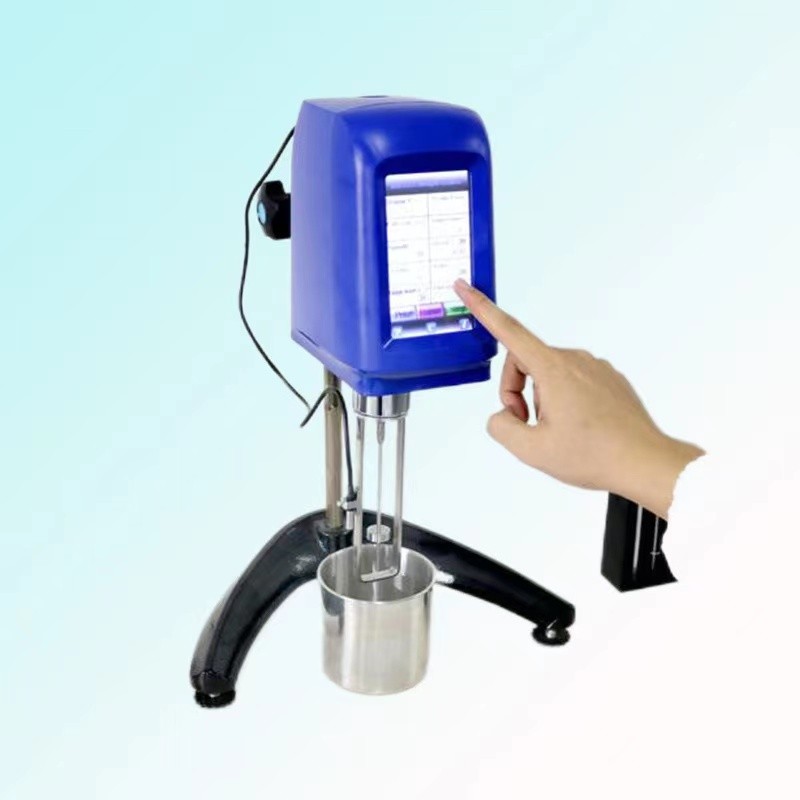

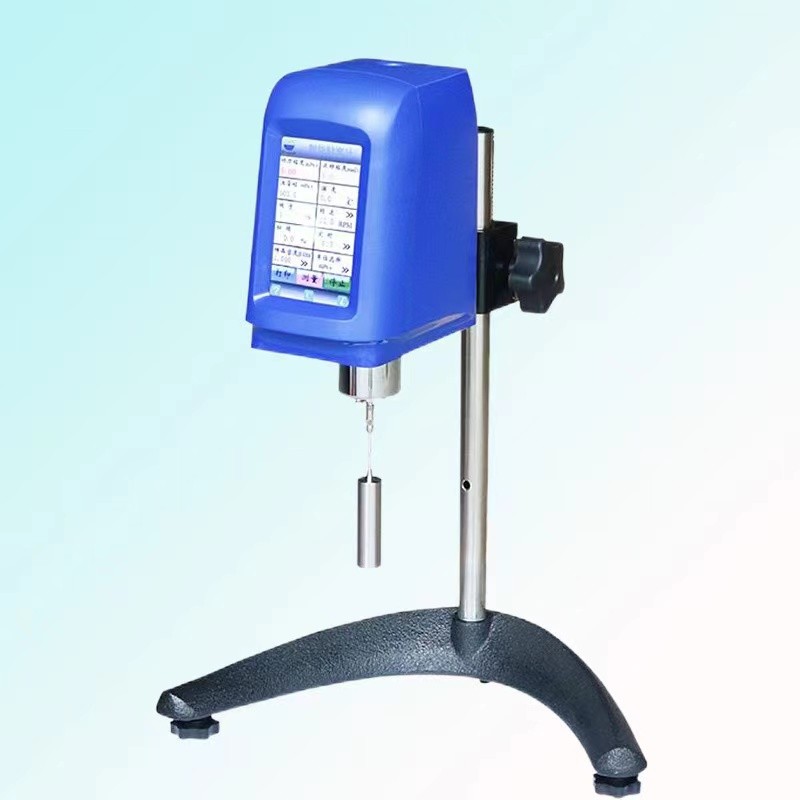

Intelligent Touch-screen Rotary Viscometer

Zhiyi-028 model ntelligent Touch-screen Rotary Viscometers are upgraded from old digital viscometers. They are equipped a 5 inch touch Iscreen with a powerful human-machine interface , easy to use and can show many testing parameters. They use a MCS-51 series computer to constantly control the rotation speed and the whole testing process. Finish viscosity measurement automatically under controlling of computer and output test results to screen. They can be used to measure viscous resistance and absolute viscosity of liquid, and widely applied in the field of petri chemistry, medicine, food, light industry, textile industry, scientific research, etc.

Advanced Features :

*Small size, good stability, high precision and good anti-interference.
*With patents to enable multiple sampling in one rotation. Other competitor only sample one time in one rotation.
*Rotate by high sub-division stepper motor driver, with accurate speed, low noise, stable movements. And the change of AC
*power frequency don't influence viscosity measurements.
*For thixotropic Non-Newton fluid, timing function of instrument can ensure to get a good consistent testing results.
*Dirven by stepper motor directly, convenient to change speed , display rotating speed clearly, good reliability and no shaking.
*5 inch high definition touch scree display viscosity, speed, torque percentage, max. measurement range under current rotor and speed.
*Display continuous change of viscosity Alarm for over measuring range.
*Linear Calibration to full range by computer, measurement precision is 1.0% of full range.
*Switching adapter, wide range power supply input 100V-240V for good anti-interference
*Anti-static shell and PC material lifting pole
*Durable new design with small shaft
*ARM chip processor, processing data more quickly
*Convert freely between various viscosity units , dynamic viscosity convert kinematic viscosity automatically
*Accompanied with detailed operation instruction and correction function for viscosity coefficient.
*Calibrated by user
*Built-in RTD temperature sensor to monitor sample temperature in real time.
*Come with RS 232 interface, can print measuring data by mini-printer with less labor.

Technical Parameters :

* ZHIYI-028A : measuring range :10-100,000mPa.s

* ZHIYI-028B : measuring range :10-2,000,000mPa.s

*Precision: ±1.0% of full range

*Repeatability:±0.5% of full range

*Weight: 10kg

* Dimension: 308mmx300mmx450mm
