Printing Proofer

Printing Proofer Introduction

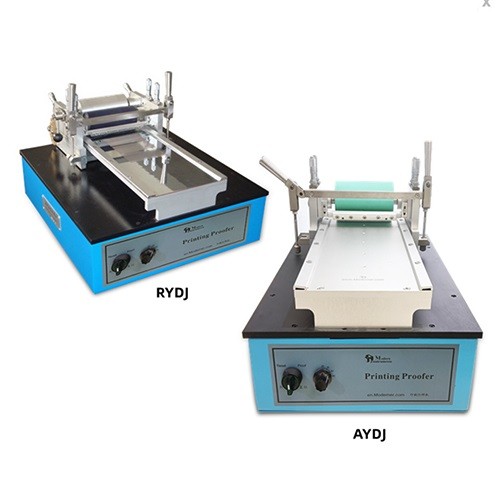

This equipment is ideal for providing quick, high accurate and repeatable samples of gravure inks under lab condition. It may be used for proofing sample、checking printability and R&D for ink products. The machine adopts engraved printing plates direct printing method. Any flexible substrate including films、paper, etc can be printed or laminated, featuring easy operation. It comes complete with: 1 Special Printing Plate for Gravure. We also have RYDJ Printing Proofer (for flexographic ink), it adopts engraved printing plates direct printing method, it can be chosen by customers.

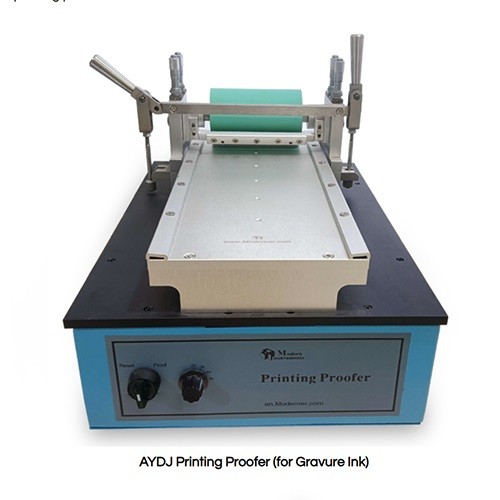

AYDJ Printing Proofer (for Gravure Ink) :
AYDJ Printing Proofer (for Gravure Ink) is ideal for providing quick、highly accurate and repeatable samples of gravure inks under lab condition. It may be used for proofing sample、checking printability and R&D for ink products. The machine adopts engraved printing plates direct printing method. Any flexible substrate including films、paper, etc can be printed or laminated, featuring easy operation. It comes complete with: 1 Special Printing Plate for Gravure.
We also have RYDJ Printing Proofer (for flexographic ink), it adopts engraved printing plates direct printing method, it can be chosen by customers.

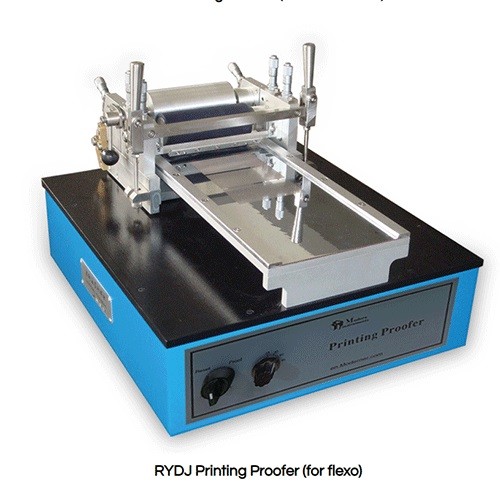

RYDJ Printing Proofer (for flexo):
Used for providing quick、highly accurate and repeatable samples of flexographic ink and water based inks. Adopt solvent resistant impression roller to simulate actual printing method. Any flexible substrate including films、paper, etc can be printed or laminated. Different version engraved printing plate can be selected.

Printing Proofer Technical Specification

AYDJ Printing Proofer (for Gravure Ink):

1. Electrical Power Source: 220V  50Hz

2. Printing Speed:20  30  40  45m/min

3. Printing Range:95×149mm

4. Printing Plate: 150 lines/inch (A、B、C、D version can be selected)

5. Specimen Page:120×240mm(Recommended)

6. Overall Dimensions: 500×400×350mm  (length by width by height)

7. Packing Size：580×540×465mm

8. Weight：26kg

9. Gross Weight：26.6kg

RYDJ Printing Proofer (for flexo):

1. Motor Power: 120W

2. Specification of impression roller/hardness: Ф50×130mm/ShoreA 50

3. Specification of metallic roller: Ф60×130mm

4. Printing Speed: 20 30 40 45m/min

5. Printing length: 150mm

6. Electrical Power Source:220V 50Hz

7. Overall Dimensions: 500×425×350mm

8. Packing Size：580×540×465mm

9. Weight：26kg

10. Gross Weight：27.8kg

Printing Proofer Related Accessories
