Portable Transmission Densitometer

Product Item : H-600A
Category： Density Meter
optical density measurement
transmission densitometer
portable transmission densitometer
digital transmission densitometer
Product description：H-600A digital transmission densitometer is an instrument used to measure the amount of light passing through transparent materials (such as a film base) to determine the amount of light absorbed by t
INQUIRY

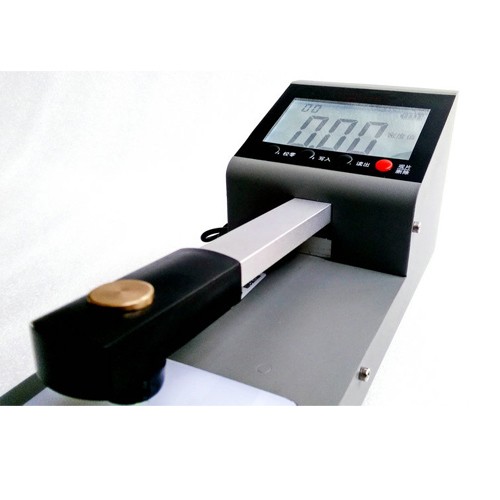

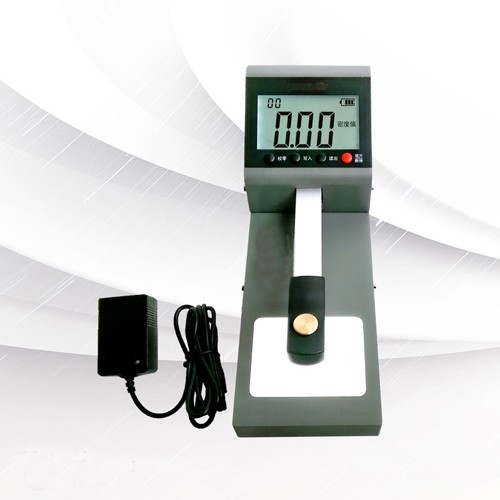

H-600A Digital Portable Transmission Densitometer Introduction

H-600A digital transmission densitometer is an instrument used to measure the amount of light passing through transparent materials (such as a film base) to determine the amount of light absorbed by the surface. It is mainly composed of an illumination system, a light collection and measurement system, and Signal processing system composition. Use AC modulated light source to provide a certain quality and stable light source. The photoelectric sensor is used to receive the amount of light passing through the film under test and convert it into an electrical signal. After the signal is processed, it is sent to the single-chip microcomputer, and the density value of the film under test show on the display.

H-600A Digital Portable Transmission Densitometer Technical Data

Measuring range	0-5 D
Measurement area	ф2mm (aperture)
Repeatability	±0.01D
Measurement error	(0.00D-3.00D) +-0.02D ( 3.00D-4.50D ) +-0.03D ( 4.50D-5.00D ) +- 0.04D
Display	Screen display
Adapter	8 .4V-1000mA
Battery capacity	2000mAh
Charging time	Less than 2h
Standby time	≥24h(about 28 hours)
Operating hours	≥4h(about 5 hours)
Power Consumption	less than or equal to 4W
Operating environment	0～40℃, relative humidity ≤85%
Machine Size	210×100×110mm
Weight	1.5kg

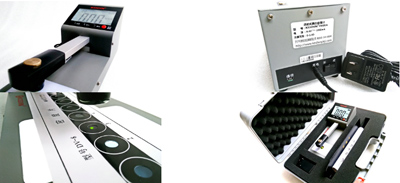

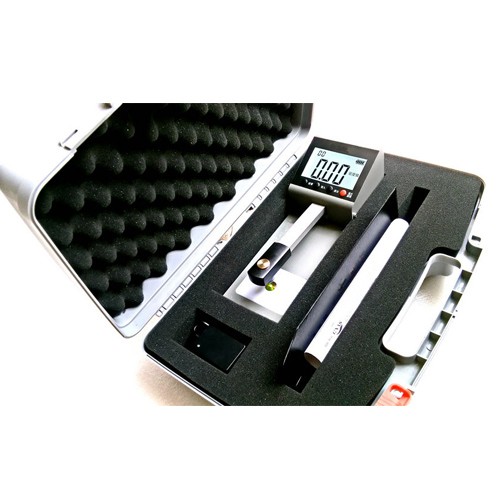

H-600A Digital Portable Transmission Densitometer Packing List

Name	Qty
Instrument main body	1 set
Density Film Standard	1 unit
Operate Manual	1 unit
Qualified Certificate	1 unit
Warranty Card	1 unit
British Standard Plug	1 unit
