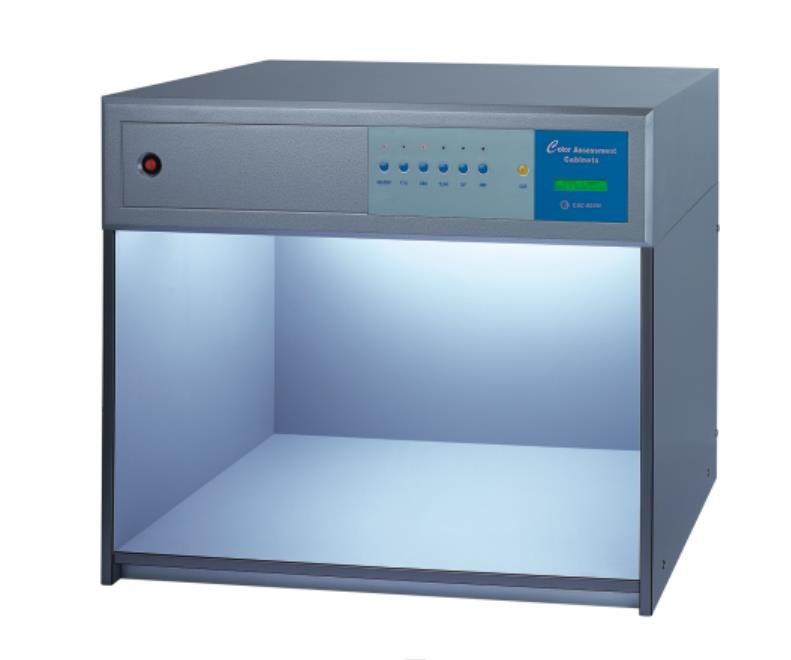

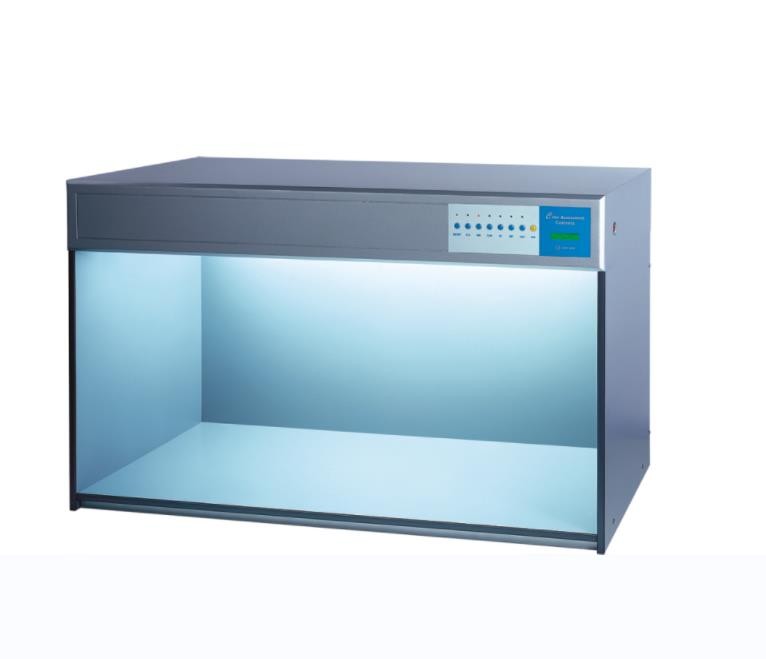

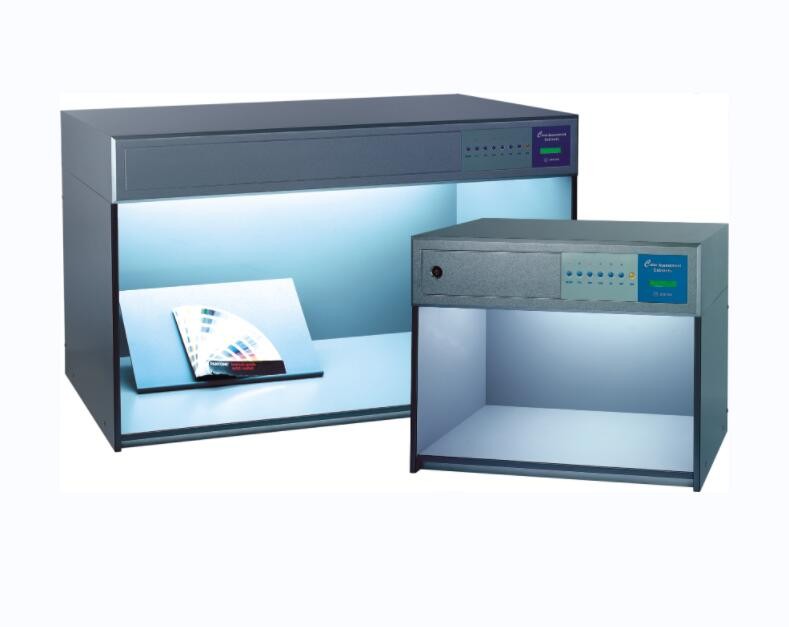

Oversize Light Box

  • Product Item : ZYLB-1200L
  • Category: Color Assessment Cabinet
  • Brand : ZHIYI
  • Model : ZYLB-1200L
  • Type : Six Light Sources Color Cabinet
  • Delivery: 5-7 days after payment received
  • Product description:Light box is also called Color Controller Light Box or Color Assessment Cabinet. It is the illuminant for testing the products color difference.
  • INQUIRY
High Quality Six Light Sources Color Matching Cabinet Price Colour Matching Light Box for Color Assessment Test


Application,
Color Assessment Cabinet, also a kind of textile testing equipment ,suitable for all industries and applications where there is a need to maintain color consistency and quality-e.g. Automotive, Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Inks and Textile test.
Since different light source has different radiant energy, when they arrive on the surface of an article, different colors display. With regard to color management in industrial production, when a checker has compared the color consistence between products and examples, but there may exist difference between light source used here and light source applied by the client. In such condition, color under different light source differs. It always brings following issues: Client makes complaint for color difference even requires for rejection of goods, seriously damaging company credit.
To resolve the above problem, the most effective way is to check good color under same light source .For example ,international Practice applies Artificial Daylight D65 as standard light source for checking goods color.
Color Assessment Cabinet is very important to use standard light source to check color difference in night duty.
Besides D65 light source ,TL84,UV, and F/A light sources are available in this Lamp Cabinet for metamerism effect.


Features:
1. Provide several light sources, i.e. D65, TL84, UV, F/A
2. Apply microcomputer to switch between the light sources quickly.
3. Super timing function to record use time of each light source separately.
4. All fittings are imported, ensuring quality.
5. Product size is  1280*590*600mm
6. Carton size:1310*620*800mm  95KG


Instructions for Light Source:


Name kelvin watt Lamp Type Uses
D65 6500K 2×36W Fluorescent
Artificial Daylight
PHILIPS TLD36W/965
International Standard
Artificial Daylight
TL84 4000K 2×36W Fluorescent
PHILIPS TLD 36W/840
European,Japan
Shop light Source
F/A 2700K 6×40W Incandescent
PHILIPS E27
Sun-settting Light
Yellow Light Source
UV / 1×36W Fluorescent
PHILIPS 36W/BLB
BLACK LIGHT
Ultraviolet Lamp

CWF

4200K 2x36W

Fluorescent

PHILIPS TLD 36w/33

COOL WHITE

Cool White Fluorescent

USA Shop Light Source


U30 3000K 2x36W

Fluorescent

PHILIPS TL`D 36W/830

Others USA Shop





Light Box Advantages:

1). Longest Warranty Time: 12 months warranty.
2). Conform to International Standard: ISO ASTM DIN BSI ANSI CIE
3). With imported component to make sure the stability of the instrument.
4). Light booth is with Chinese Patents and with CE certification.
5). After power off, the data could be saved automatically.


Packing List:

No. Name Quantity
1 Light Booth Top Cover 1 pcs
2 Light Booth Bottom 1 pcs
3 Light Booth Back Cover 1 pcs
4 Light Booth Side Cover 2 pcs
5 Power Line 1 pcs
6 Operating Manual 1 pcs
7 Warranty Card 1 pcs
8 D65 Light Tube 2 pcs
9 TL84 Light Tube 2 pcs
10 UV Light Tube 1 pcs
11 F/A Light Tube 4 pcs
12 CWF Light Tube 2 Pcs
13 UV 1 Pcs
14 U30 2 Pcs



Light Sources D50 and others can be custom made. If you need, please let us know your detail requirement.
